Occlusal Disorders in Patients with Sickle Cell Disease: Critical Literature Review

INTRODUCTION

Sickle cell disease (SCD), an autosomal recessive genetic disorder [1] that originated in Africa and was brought to the Americas by the forced immigration of slaves, is highly prevalent in the black population and in its descendants [2]. Around 20 to 25 million individuals worldwide harbor the homozygous allele, 12-15 million in Sub-Saharan Africa, 5-10 million in India, and approximately three million in other regions of the world. Approximately 8% of Afro-Americans carry the mutated gene, and the expected incidence of SCD is one in 625 births [3, 4].

This disease is considered one of most common hereditary hemoglobinopathies in the world, and it is regarded as a global health problem [5]. It is caused by a mutation in nucleotides resulting from the replacement of glutamic acid with valine at position 6 in the beta-globin subunit. This amino acid replacement causes changes in the physical properties of the globin chain, in such a way that during physiological stresses, mainly hypoxia, hemoglobin S (HbS) polymerizes into crystals, distorting red blood cells into a sickle shape. This event also induces the expression of several cell adhesion molecules that facilitate the physical interaction of sickle-shaped erythrocytes with leukocytes and endothelium, leading to vaso-occlusive events and to hemolytic anemia, which play a key role in the clinical complications of SCD [6].

SCD is a generic term that encompasses a group of hereditary hemolytic anemias [7] with some peculiarities, but with similar clinical and hematologic manifestations [8]. Among genetic disorders, sickle cell anemia (SCA) is clinically and hematologically the most severe and also the most prevalent [9].

It is important to bear in mind that SCD is characterized by several acute and chronic complications, including anemia, severe infections, hemolytic and vaso-occlusive events, bouts of recurrent pain, stroke, acute chest syndrome, pulmonary hypertension, and chronic lesions in different organs [10, 11].

SCD can affect various bodily systems, including the stomatognathic system [12]. The oral manifestations of SCD are not pathognomonic for the disease and can be present in individuals with other systemic disorders [13]. The most common clinical signs are: mucosal pallor, delayed tooth eruption, enamel and dentin demineralization, hypercementosis, pulp calcifications, changes in tongue surface cells, and bone changes, resulting in maxillary protrusion and formation of a dense trabecular pattern [14].

SCD also seems to be a risk factor for the development of malocclusion because erythrocytes are short-lived and need to be produced constantly and thus patients often have hyperplasia and compensatory bone marrow hyperplasia, which may cause craniofacial deformities [15]. Craniofacial anomalies can be observed as midfacial outgrowth/ protrusion, maxillary expansion, predominantly vertical growth, mandibular retrusion, convex profile, and maxillary protrusion [16].

Craniofacial anomalies may contribute to malocclusion in any individual [17]. In SCD patients, these anomalies may result from bone marrow hyperplasia and expansion as a way to compensate for the early destruction of red blood cells [18, 19].

Children and adolescents with SCD often present with maxillary prognatism, caused by compensatory bone marrow hyperplasia and diastemas as a result of growth changes [8, 20, 21, 22]. Besides these manifestations, most SCD patients have respiratory and masticatory dysfunctions, which contribute to malocclusion [23]. Thus, SCD appears to be a risk factor for moderate to very severe malocclusion, especially if related to tooth loss, anterior spacing, overjet, anterior crossbite, and open bite [15]. Note that malocclusion can remarkably affect the oral health-related quality of life of these patients, who require earlier dental care [24].

The aim of this study was to establish an association of SCD with occlusal disorders based on a literature review.

MATERIALS AND METHOD

Selection of publications and data extraction

The assessment and selection of the articles were made by two independent researchers with later comparison of the results for consensus selection of the texts. In cases of disagreement or uncertainty about the inclusion of the articles, a third researcher was consulted. Duplicate articles indexed in both databases were included only once. The selection of the publications was carried out in two stages: (1) selection by titles and abstracts and (2) qualitative analysis of full articles (Figure 1). This method followed PRISMA (Preferred Reporting Items for Systematic Reviews and Meta-Analyses) guidelines [25]. After the selected articles were critically read, the data were analyzed, discussed, and tabulated to describe the prevalence, severity, and types of malocclusion in SCD patients.

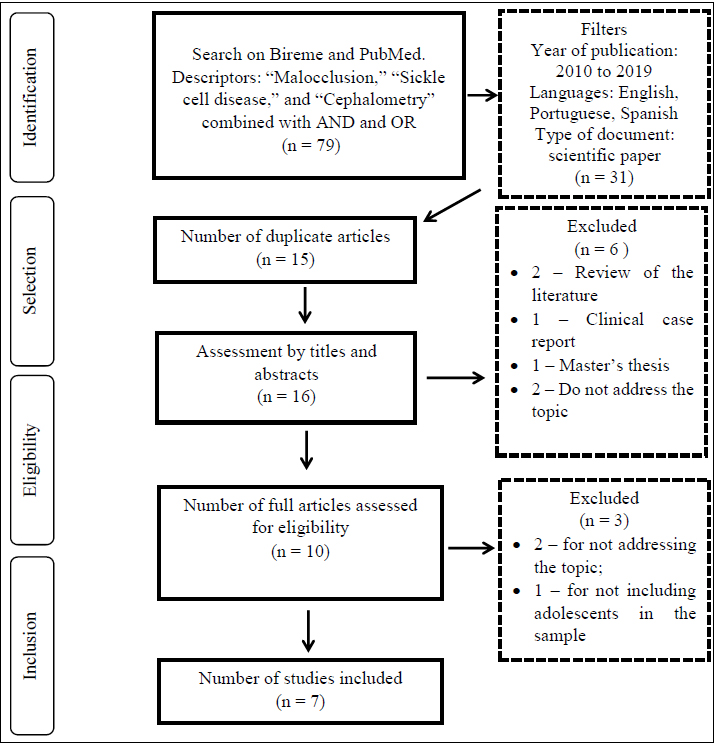

Figure 1. Flowchart showing search strategy and selection of articles on Bireme and PubMed websites.

			RESULTS
Author (Year)/Country	Type of study	Sample (n)/age range (months to years)	Orthodontic diagnostic method	Results
Pashine et al. (2019)[26]/India	Comparative cross-sectional	50 with SCD	Dental Health	SCD patients: 24% of malocclusion, (p=0.004), (4% regarded as severe).
		50 healthy	Component of Index of Orthodontic Trentment Need (DHC-IOTN)	Class II molar relationship (60%), crowding in the incisal segment (24%), increased overjet (62%), and open bite (10%) (p<0.001). SNB (77.18º) (p= 0.001) and ANB (5.58º) (p = 0.034).
		(10–18 years)	Dental Aesthetic Index (DAI)	Control group: 4% of malocclusion (0% regarded as severe)
			Cephalometric analysis	Class II molar relationship (2%), crowding in the incisal segment (14%), increased overjet (4%), and open bite (0%). SNB (79.52º) and ANB (4.56º).
Basyouni et al. (2018)[20] / Saudi Arabia	Comparative crosssectional	112 with SCD	DAI	SCD patients: 87.5% of malocclusion, (p = 0.0001), (37.5% regarded as severe).
		124 healthy	Cephalometric analysis	Crowding in the incisal segment (72.4%) (p= 0.016), overjet (67.3%) (p = < 0.0001), and upper jaw misalignment in the anterior segment (56%) (p = < 0.0001).
		(12–18 years)		Open bite (38.4%) (p= 0.001). Posterior crossbite (67%) (p<0.0001).
				Cephalometric analysis: SNA (86.7º) and ANB (9.9º) (p < 0.05).
				Control group: 54% of malocclusion (26.6% regarded as severe).
				Crowding in the incisal segment (56.7%), overjet (32.8%), and upper jaw misalignment in the anterior segment (30%). Open bite (19.3%). Posterior crossbite (37.1%).
				Cephalometric analysis: SNA (81.5º) and ANB (2º).
Helaly and Abuaffan (2016)[27]/ Sudan	Retrospective cohort	212 with SCD	Clinical assessment (Angle’s classification)	SCD patients: 4–6 years: crowding (1.3%) (p= 0.000), overjet (7.9%) (p= 0.002), increased overbite (2.6%), and anterior open bite (5.3%) (p= 0.063; RR= 6.1);
		212 healthy		7–11 years: Angle’s Class II (19.7%) (p=0.002), overjet (30.3%) (p= 0.000), increased overbite (10.6%), and anterior open bite (24.2%) (p= 0.000).
		(4–14 years)		12–14 years: Angle’s Class II (22.9%) (p= 0.000), overjet (42.9%) (p= 0.000), increased overbite (21.4%), and anterior open bite (15.7%) (p= 0.000).
				Control group: 4-6 years: crowding (0%), overjet (0%), increased overbite (0%), and anterior open bite (1.3%);
				7–11 years: Angle’s Class II (3%), overjet (0%), increased overbite (0%), and anterior open bite (4.5%).
				12–14 years: Angle’s Class II (0%), overjet (0%) increased overbite (0%), and anterior open bite (4.3%).
Costa et al. (2015)[15]/ Brazil	Retrospective cohort	93 with sickle cell anemia (SCA)	DAI	SCA patients: 76.3% of malocclusion (30.1% regarded as very severe) (p < 0.001).
		186 healthy patients		SCA is correlated with loss of anterior teeth (41.9%) (RR = 1.94), anterior spacing (60.2%) (RR = 1.66), overjet (67.7%) (RR = 1.87), anterior crossbite (12.9%) (RR = 1.94), and open bite (12.9%) (RR = 1.94).
		(16–60 years)		Control group: 52.7% of malocclusion (2.7% regarded as very severe).
				Loss of anterior teeth (37.1%), anterior spacing (36%), overjet (36%), anterior crossbite (3.2%), and open bite (0.5%).
Pithon et al. (2014)[28]/ Brazil	Crosssectional	15 SCA patients	Cephalometric analysis	SCA patients: The mean SNA was 83.0º, indicating proper positioning of the mandible from the skull base. A high ANB mean was observed (5.47º) (p < 0.001), indicating a tendency to Class II skeletal malocclusion due to mandibular retrusion.
		15 healthy patients
		(18–29 years)		Control group: The mean SNA was 79.7º, indicating proper positioning of the mandible from the skull base. The mean ANB was 1.80º.
Luna, Godoy and Menezes (2014)[22]/ Brazil	Crosssectional	35 children with SCD (5 years)	DAI	Children with SCD: The prevalence of malocclusion was 62.9%. The main types of malocclusion were Class II (37.1%), increased overjet (28.6%), poor overbite reduction (28.6%), and open bite (17.1%).
		36 adolescents with SCD (12–18 years)		Adolescents with SCD: The prevalence of malocclusion was 100%, and 80.6% was regarded as very severe. The most prevalent types of malocclusion were maxillary overjet (63.9%) and upper jaw misalignment (58.3%).
Maia et al. (2011)[16]/ Brazil	Cross-sectional	50 SCA patients (18–43 years)	Cephalometric analysis	SCD patients: The mean SNA was 84.56º, indicating proper positioning of the maxilla from the skull base. The prevalence of Class II was 32% and 31% had maxillary protrusion; the effective maxillary length decreased by 64%. Mandibular retrusion was observed in 30% and 76% revealed shorter mandibular length. The mean ANB was 4.44º.

DISCUSSION

The general manifestations of SCD are widely known and well described; however, details about the oral consequences of the disease are lacking. There exist different oral manifestations of SCD, but most are not pathognomonic for the disease [29]. Therefore, dental surgeons play a crucial role in a multidisciplinary team as they can adopt preventive measures and select effective treatments with improvements in the quality of life of patients.

The results of the present review show that SCD patients tend to develop malocclusion when compared to healthy individuals. Basyouni et al [20] demonstrate that 87.5% of Saudi Arabian adolescents with SCD presented with malocclusion compared to 54% in the control group. The rate of SCD patients with severe malocclusion was larger than in the control group (37.5% vs. 26.6%). Hence, the authors underscore the importance of regular dental assessments and early orthodontic treatment for improvement of oral health and, consequently, of the quality of life of SCD patients. Al-Hummayani and Taibah [30] assessed occlusion in healthy Saudi Arabian adolescents and concluded that 24.3% had severe malocclusion, which frequently consisted of crowding (48.8%) and increased overjet (21.8%). Open bite and posterior crossbite had low prevalence rates (4.8% and 3%, respectively). Therefore, when compared to healthy individuals, SCD patients had more severe and more frequent occlusal disorders such as incisal crowding (72.4%), increased overjet (67.3%), open bite (38.4%), and posterior crossbite (67%) [20].

Costa et al [15] concluded that SCA is a risk factor for moderate to very severe malocclusion. The prevalence of malocclusion was 76.3% in SCA patients, and among these 30.1% was classified as very severe. As for healthy individuals, the prevalence was 52.7%, with very severe malocclusion in 2.7%. This corroborates the findings described in the literature. Onyeaso and Da costa31 observed very severe malocclusion in 31.3% of SCA patients, whereas Luna, Godoy and Menezes [22] observed it in 80.6% of their sample. Overjet (67.7%) was statistically significant between the groups and was regarded as a probable consequence in SCA patients [15]. Da costa et al. [32] noted increased overjet in 48.2% of SCA patients. Helaly and Abuaffan [27] also revealed a high prevalence of malocclusion in children and adolescents with SCD and they concluded that this disease seems to be a risk factor for malocclusion, especially when related to Angle’s Class II malocclusion, increased overjet, and anterior open bite. These studies are in line with the one conducted by Pashine et al [26], in which children with SCD showed a remarkable tendency to Class II molar relationship, crowding in the incisal segment, open bite, and increased overjet when compared to healthy children. A possible explanation for this increased overjet could be the higher bone marrow activity and maxillary growth dysplasia observed in SCD patients [33]. Moreover, the larger number of malocclusions in these patients could be related to muscle imbalance, lip incompetence, or changes in bone base, which indicates the need for orthodontic intervention [34]

Pithon et al [28] performed a cephalometric analysis of SCD patients and noted a class II skeletal pattern due to mandibular retrusion. However, in this sample, most patients did not exhibit compensatory upper jaw expansion, determined by normal mandibular length and absence of maxillary protrusion, which is at odds with studies that describe this compensatory maxillary expansion as one of the possible causes of malocclusion in these patients. Likewise, Maia et al [16] concluded that most patients did not have compensatory maxillary expansion determined by the prevalence of shorter maxillary length and by the absence of maxillary protrusion in SCA patients. This study also indicated a slight increase in the ANB angle (anteroposterior relationship between the maxilla and the mandible) in these patients, suggesting a tendency towards a class II pattern [16]. Basyouni et al [20] demonstrated a tendency towards class II malocclusion in SCD patients as the ANB angle was significantly larger than in the control group. Conversely, this study [20] is at odds with that carried out by Pithon et al [28] concerning the SNA angle, which represents the anteroposterior positioning of the maxilla relative to the skull base, since the mean angle observed by Basyouni et al [20] was enlarged (86.7º) and that resulted in maxillary prognathism when compared to the former study (83.0º), which indicates absence of maxillary protrusion in SCD patients [28].

Likewise, in the study conducted by Pashine et al [26], SCD patients had severe malocclusion that tended towards class II skeletal type, as the ANB was significantly higher in this group. In addition, SNB, used to assess the position of the mandible relative to the skull base, was significantly lower in children with SCD than in healthy ones, indicating mandibular retrusion [26].

Luna, Godoy and Menezes [22] also verified a high prevalence of malocclusion in SCD patients, which affected 62.9% of the children. Similarly, in the latest epidemiological survey on oral health conducted by the Brazilian Ministry of Health, the prevalence of malocclusion was 66.7% in 5-year-old healthy children [35]. On the other hand, the major types of malocclusion observed by Luna, Godoy and Menezes [22] in children with SCD were Class II molar relationship (37.1%), increased overjet (28.6%), poor overbite reduction (28.6%), and anterior open bite (17.1%), with higher rates than those obtained for healthy Brazilian children, who showed class II molar relationship in 16.6% of the sample, increased overjet in 22%, poor overbite reduction in 11.9%, and anterior open bite in 12.1% [35]. However, posterior crossbite was more prevalent (21.9%) in healthy children according to SB Brasil [35] compared to 8.6% in children with SCD [22]. Helaly and Abuaffan [27] observed increased overjet in 7.9% and open bite in 5.3% of children with SCD, showing lower rates than those described in the aforementioned studies. Nevertheless, when compared to the control group, patients with SCD had higher and more significant rates of malocclusion than did healthy children [27].

The prevalence of malocclusion in adolescents with SCD was 100% in the study by Luna, Godoy and Menezes [22], and most adolescents had very severe or incapacitating malocclusion (80.6%). These findings do not concur with those of the study carried out by SB Brasil [35] with healthy adolescents, in which prevalence rates were 38.8% for malocclusion at the age of 12 years, 6.5% for very severe occlusal disorders, and 35.6% for adolescents aged 15 to 19 years, with 9.1% of very severe malocclusion. The most common types of malocclusion among adolescents with SCD were maxillary overjet (63.9%) and maxillary anterior misalignment (58.3%) [22]. Martins et al [36] observed a significant prevalence of 31.3% for malocclusion in healthy adolescents, 5.2% for increased maxillary overjet, and 7.4% for upper jaw misalignment. The most frequent types of malocclusion were dental crowding in 51.9% of adolescents, spacing in 32.1%, and diastema in 23.7% [36]. In adolescents with SCD, these types of malocclusion had lower prevalence rates (22.2%, 16.7%, and 13.9%, respectively) [22].

This demonstrates that SCD patients tend to develop certain types of malocclusion when compared to healthy individuals, which could be explained by increased bone marrow activity, possibly leading to changes in the trabecular bone associated with bone expansion and with increased overjet between the arches due to maxillary protrusion [8, 18, 19, 20, 21, 22].

However, owing to the paucity of studies on oral manifestations in SCD patients, further longitudinal studies are needed to confirm this association between malocclusion and SCD. Public policies targeted at SCD patients are of paramount importance for assessment of malocclusion and, if necessary, for early treatment, given the impact of malocclusion on the quality of life of these patients.

CONCLUSION

Studies have revealed a high prevalence of malocclusion in SCD patients, showing a high rate for very severe malocclusion when compared to that observed in healthy individuals. The most common types of malocclusion were class II molar relationship, increased overjet, and anterior open bite. Class II skeletal pattern was the most prevalent due to mandibular retrusion. Therefore, SCD patients should be followed up by dentists as well in order to initiate orthodontic treatment as soon as possible, preventing severe impact on the dentition and thus contributing to improving quality of life.
