In vitro evaluation of wear resistance, microhardness and superficial roughness of different fissure sealants after aging

1. Introduction

Dental caries is a dynamic, chronic and multifactorial disease characterized by the loss of substance from the teeth hard tissues. The dental caries prevalence has decreased worldwide, however its incidence on the occlusal surface of molar teeth is on the rise which may be closely related to the fissures morphology [1, 2, 3, 4].

Various therapeutic interventions have been proposed to prevent the initial occlusal caries. They include plaque control through tooth brushing, mouthwashing, varnishing and fissure sealing [5, 6].

Nowadays, the higher incidence of pit and fissure caries in children and adolescents requires preventive methods and materials. The preventive measures are based on controlling the oral biofilm population. The methods to prevent pit and fissure caries include mechanical and chemical plaque controls, and pit and fissure sealant applications. The occlusal sealing materials have proper marginal seal, antibacterial properties, retention in fissures and penetration ability. Resin composite sealants have high retention rate towards enamel compared to the other sealant materials [5]. However, their efficacy is undermined when the operative field cannot be isolated. This is the case in permanent molars not fully erupted or primary molars in children [7].

The physical structure of dental materials and prognosis of applied treatments can be negatively affected by the mechanical movements and temperature changes in oral cavity. The in vitro evaluation of dental materials has been preferred to simulate the oral cavity conditions (thermocycling, water aging and chewing forces) in laboratory environment for mimicking the natural aging process since in vivo evaluation of dental materials has been difficult in the clinical trials. Thus, the in vitro examination of dental materials before and after the aging procedures is important nowadays. It is observed from the literature that there are limited studies examining the changes in physical properties of fissure sealant materials after the in vitro aging procedures [8].

The aim of this study is to evaluate and compare the effects of aging procedures on surface characteristics of fissure sealants including various chemical ingredients. The resin-based Clinpro, glass ionomer-based (S-PRG (surface reacted glass filler)), Beautisealant, hydrophilic Ultraseal XT Hydro, and ACP (amorphous calcium phosphate)-based Aegis are compared as the sealants after in vitro aging procedures.

2. Materials and methods

The study was conducted at the Department of Pediatric Dentistry, Faculty of Dentistry, Istanbul University, and the nano-optoelectronics research laboratory of Department of Physics, Faculty of Science, Istanbul University.

In this study, the resin-based Clinpro (3M ESPE, USA), glass ionomer-based (S-PRG), Beautisealant (BS; Shofu Inc. Kyoto, Japan), hydrophilic Ultraseal XT Hydro (Ultradent, South Jordan, USA), and ACP-based Aegis (Bosworth Company, USA) as the fissure sealants were evaluated and compared after the in vitro aging procedures. These four types of fissure sealant materials are listed in Table 1 as Group A, Group B, Group C and Group U.

The ready-made silicone molds of 5 mm diameter and 3 mm height were used to create disc-shaped specimens [9, 10, 11, 12]. According to the manufacturers’ recommendation, the fissure sealant materials were applied in equal amounts to silicone molds placed on flat glass plate. The excess materials were removed by lightly pressing the glass plate placed on top of the molds. The fissure sealant samples were polymerized for 20 seconds using curing light (VALO, Ultradent, South Jordan, Utah, USA) as per the manufacturers’ recommendation. The samples surfaces were wet sanded with 600, 800 and 1200 grit sandpapers in water for 30 seconds each, respectively. The samples were polished with polishing wheel and kept in distilled water at 37 °C until the day of experiment [10, 12].

The experimental samples in Discs form were grouped for testing the microhardness, surface roughness and wearing. Hundred disc-shaped specimens were arranged as follows: eight specimens from each group for wear measurements, seven for roughness, nine for microhardness and one randomly selected after wearing test for scanning electron microscopic (SEM) analysis.

The samples were stored in distilled water at 37 °C for 24 h prior to the testing.

According to the Power analysis conducted using G*Power (Version 3.1.9.7, Heinrich-Heine-Universität Düsseldorf, Dusseldorf, Germany) program, the minimum sample size determined for each group was n = 7 for the roughness levels with effect size (d) of 0.730, power of 0.80, and α of 0.05. Similarly, the minimum sample size was n = 9 for the microhardness levels with effect size (d) of 0.468, power of 0.80, and α of 0.05. The minimum sample size for the wear levels was n = 8 with effect size (d) of 0.695, power of 0.80, and α of 0.05.

In the first aging procedure, the disc-shaped specimens were thermocycled 10,000 times using electronic thermal cycling machine at Istanbul University, Faculty of Dentistry Research Laboratory named as Dentester Salubris Technica (Massachusetts, ABD) (Fig. 1). They were put in water baths at 5 ± 2 °C, and 55 ± 2 °C with 20 seconds dwell time in each bath [13].

In the other aging process, the chewing simulator procedures were conducted using S.D Mechatronik Chewing Simulator CS-4 (S.D Mechatronik, Munich, Germany) (Fig. 2). In this study, the steel components were used as an antagonist. A weight of 5 kg equivalent to 49 N chewing force was exerted on the specimens. The cyclic movements were repeated 75,000 times accompanied by thermocycling. The wear test parameters are presented in Table 2.

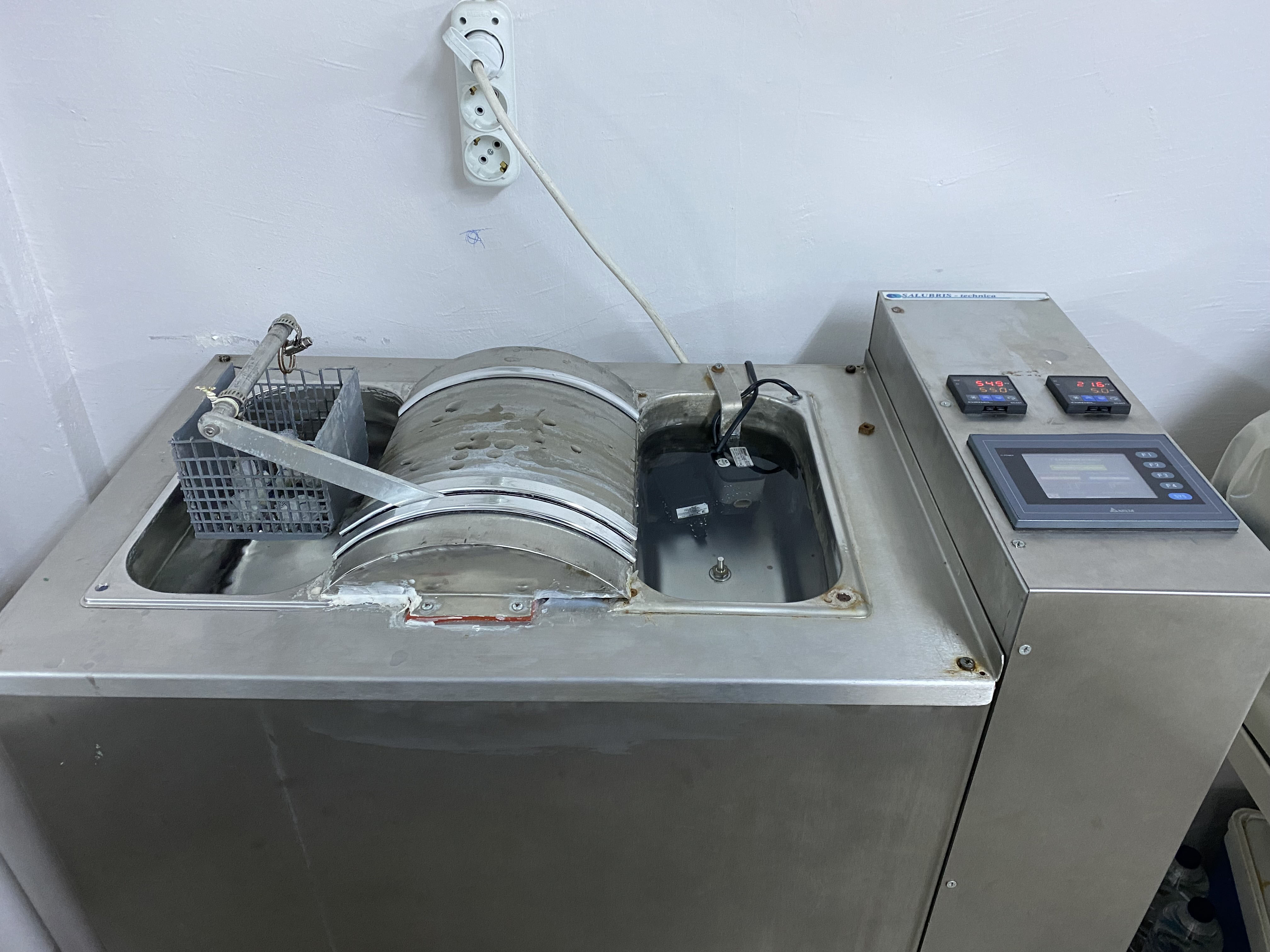

Fig. 1.Thermal Cycle Dentester Salubris Technica (Massachusetts, ABD).

Fig. 2.S.D Mechatronik Chewing Simulator CS-4 (Germany).

The microhardness of 36 specimens (nine per each sealant) was measured in triplicate using microhardness tester (Innovatest™ 400 Series, Maastricht The Netherlands) with 500 g load and 15 second dwell time. The average measurement was recorded (VHN (Vickers Hardness Number)) before and after the thermocycling.

The surface roughness of 28 specimens (seven per each sealant) was measured using 2-dimensional profilometer (Taylor Hobson S25 Surtronic Profilometer, Illinois, USA) with 5 µm diamond stylus angled at 90°. Three measurements were made in different directions starting from the midpoint of each specimen with 0.25 mm cut-off length. The average roughness for each specimen was calculated and recorded (Ra, in µm).

The substance loss for specimens was determined by weighing before and after the chewing simulator cycles on electronic weighing balance (Densi HZY 2200, Istanbul, Turkey) having accuracy of 0.0001 gram.

A randomly selected sample from each fissure sealant group was taken for SEM evaluation before and after the chewing process. SEM were recorded in low vacuum of 20 kV at various magnifications (×250, ×500, ×1000).

The data were analyzed with IBM SPSS V23 (Armonk, NY, USA), and conformity to the normal distribution was evaluated using Shapiro-Wilk test. Kruskal-Wallis test was employed to compare the microhardness roughness, and roughness difference values ​​which were not normally distributed according to the materials. Dunn test examined the multiple comparisons made. Welch test compared the microhardness and wear changes which were normally distributed according to the materials and their variance was not homogeneous. Tamhane’s T2 test examined the multiple comparisons made. A one-way analysis of variance (ANOVA) compared the wear values ​​with normally distributed and homogeneous variance. Wilcoxon test compared the non-normally distributed roughness and microhardness values ​​within the materials according to time. The paired sample t-test compared the normally distributed wear values. Results were presented as mean ± s for the quantitative data being deviation and median (minimum–maximum). The significance level was considered as p < 0.050.

3. Results

The microhardness test results depcited the highest median values before and after the cycles for Group U (32.12 ± 1.91/22.25 ± 0.71 VHN), and the lowest for Group C (18.27 ± 1.24/11.84 ± 0.31 VHN). A significant difference was found between the median values before and after the cycles in all groups (p < 0.001, Table 3).

The microhardness test results showed the highest mean of change in Group U (9.88 ± 1.46), while the lowest in Group A (4.40 ± 0.46) (U > B > C > A). A significant difference was found between the mean values of changes in all groups (p < 0.001).

The microhardness test results revealed statistically significant difference between the median values of materials after thermal cycling procedure. After thermal cycling, the median microhardness of groups A, B, C and U were 14.90, 14.24, 11.91 and 22.33, respectively. The highest median was obtained in group U and the lowest in group C. The median microhardness values were significantly different before and after the thermal cycling in groups A, B, C and U (p = 0.008). The mean VHN changes were 4.40 ± 0.46, 7.56 ± 0.54, 6.42 ± 1.19 and 9.88 ± 1.46 in Groups A, B, C and U, respectively. The highest mean change was found in group U and the lowest in group A.

The highest average roughness was found in group B before the thermal cycling, while it was the highest in group C after thermal cycling. Upon examining the average roughness change rates, the highest were in groups C and U while the lowest in groups A and B. The median roughness values before and after thermal cycling for groups A, B, C and U were 0.73–1.40, 0.78–1.45, 0.79–1.59 and 0.83–1.52, respectively.

The roughness medians and roughness change values had no significant difference before and after the thermal cycling among materials. However, differences were found in the roughness before and after thermal cycling in groups A, B, C and U (p = 0.018) (Table 4).

Before and after the chewing simulation procedure, the highest average weights were found in group B while the lowest in group A. Upon examining the percentage change in average weights before and after chewing simulation, the highest change rate was in group U, while the lowest in group C (p < 0.001).

The average weights before and after the chewing simulation for each material had no statistically significant difference (p > 0.05). However, differences were found between the average weights before and after chewing simulation procedure in groups A, B, C and U (p < 0.001) (Table 5).

According to the materials, there was a statistically significant difference in the mean weight change values (p < 0.001). The mean weight change was lower in group C and higher in group U compared to the materials in other groups.

The smooth and the homogeneous SEM image was observed for Group A in the beginning. Groups C and U particles were large and heterogeneous (Fig. 3A,4A,5A). Particles in each group were observed before the chewing simulator process. Wear on samples after the process was due to the horizontal and vertical forces applied in the procedure.

An irregular surface was observed in all groups after the chewing simulator procedure because of the displacement of particles by vertical and horizontal forces. The cracks significantly increased in Groups A and C, however could not be clearly observed in Groups B and U after chewing simulator process (Fig. 3B,4B,5B).

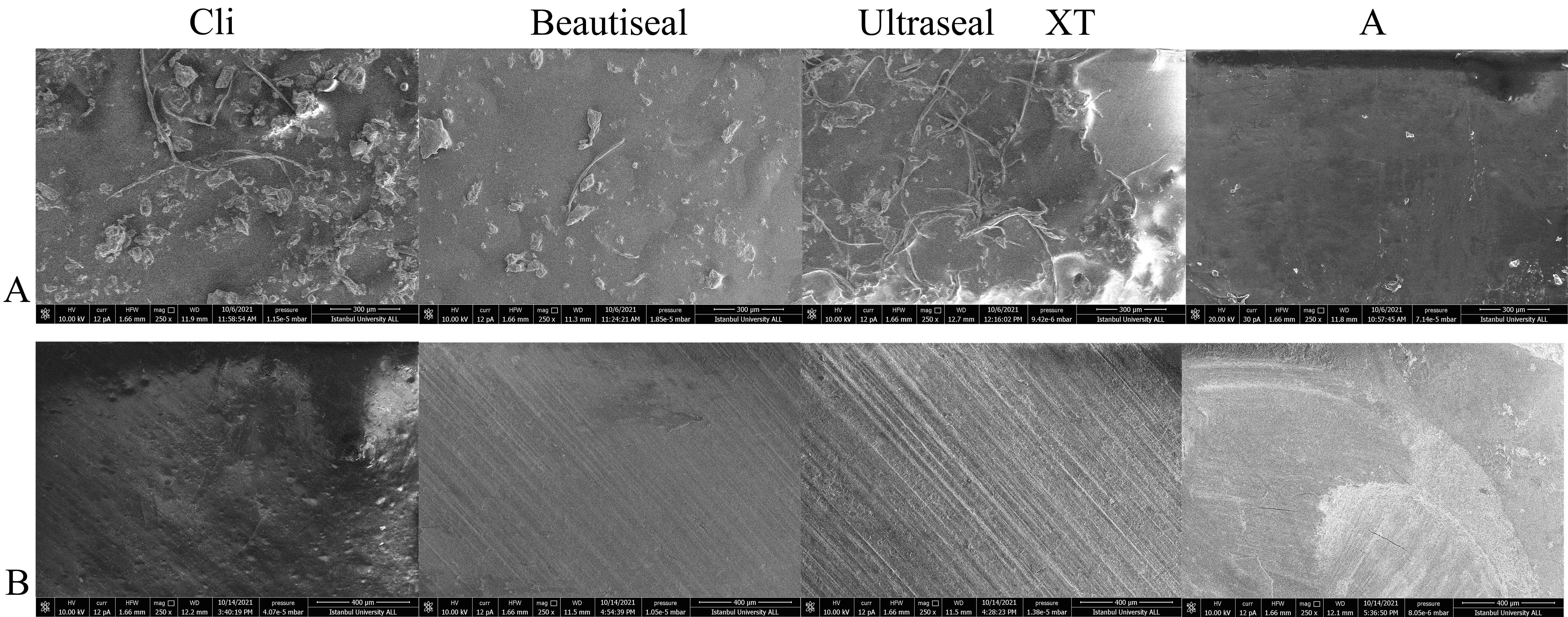

Fig. 3.Sem Images 250×. (A) SEM images of Clinpro, Beautisealant, Ultraseal XT Hydro, and Aegis before the chewing process (250×). The smooth and homogeneous image was observed for Group A in the beginning. Groups C and U particles were large and heterogeneous. (B) SEM images of Clinpro, Beautisealant, Ultraseal XT Hydro, and Aegis after chewing process (250×). An irregular surface was observed after the chewing simulator procedure for all groups due to the particles displacement by vertical and horizontal forces. The cracks significantly increased in the samples of Groups A and C, however they could not be clearly observed in Groups B and U after the chewing simulator process.

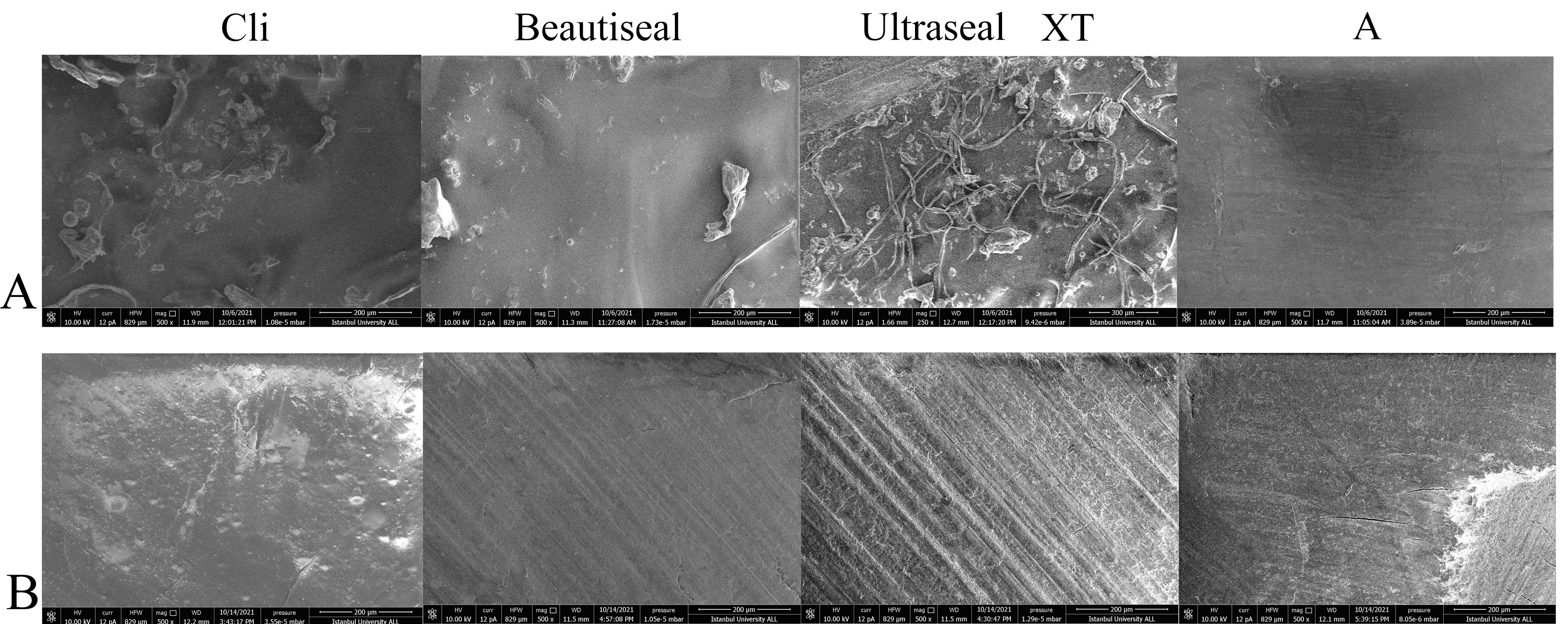

Fig. 4.Sem images 500×. (A) SEM images of Clinpro, Beautisealant, Ultraseal XT Hydro, and Aegis before the chewing process (500×). Group A exhibited the smooth and homogeneous image in the beginning while Groups C and U had shown large and heterogeneous particles. (B) SEM images of Clinpro, Beautisealant, Ultraseal XT Hydro, and Aegis after chewing process (500×). All groups showed irregular surface after the chewing simulator procedure due to the particles displacement by vertical and horizontal forces. Samples from Groups A and C exhibited significant increase in crack appearance, however, it was not clearly observed in Groups B and U after the chewing simulator process.

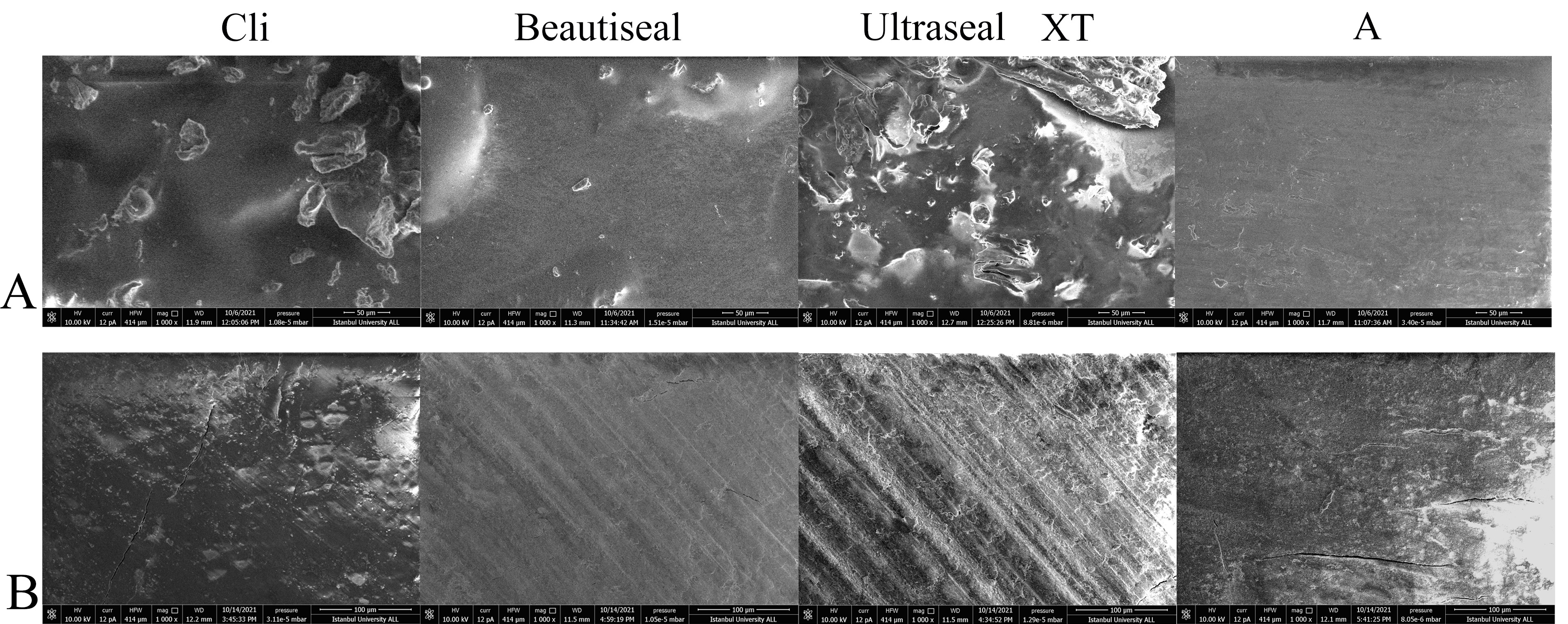

Fig. 5.Sem images 1000×. (A) SEM images of Clinpro, Beautisealant, Ultraseal XT Hydro, and Aegis before the chewing process (1000×). Group A exhibited the smooth and homogeneous image in the beginning while Groups C and U had shown large and heterogeneous particles. (B) SEM images of Clinpro, Beautisealant, Ultraseal XT Hydro, and Aegis after the chewing process (1000×). All groups showed irregular surface after the chewing simulator procedure due to the particles displacement by vertical and horizontal forces. Samples from Groups A and C exhibited significant increase in cracks, however they were not clearly observed in Groups B and U after the chewing simulator process.

4. Discussion

The dentists are required to know the etiology of caries and develop preventive measures against the involved factors. Preventing the cavities and preserving dental tissues are less costly and time-consuming than the procedures restoring the existing cavities [14, 15].

More than 85% caries are seen on occlusal surfaces because of the complex morphology of pits and fissures. Oral and dental health education and fluoride application are not sufficient to prevent the occlusal caries, and thus the pit and fissure sealants are widespread [16, 17]. The pit and fissure sealant effectiveness in preventing occlusal caries has led to the studies on developing these materials.

In this study, the physical values of fissure sealant materials after aging procedures are compared to determine the most suitable for the clinical applications.

In literature, no study is found that compares the microhardness of fissure sealant materials used in this study before and after the thermal cycling and aging. In addition, there is no study examining the microhardness of Beautisealant, a fissure sealant containing surface prereacted glass ionomer (S-PRG). Beautisealant creates long-lasting glass ionomer phase using S-PRG, which yields urethane resin having silica upon combining with polyalkenoic acid. There is an improved giomer sealant’s fluoride release capabily [18].

This study is unique regarding Aegis® pit and fissure sealant containing ACP as no similar study is found. This light-curing sealant exhibits comparable characteristics to the conventional resin-based sealants. Amorphous calcium phosphate (ACP) serves as a precursor for creating hydroxyapatite (HAP) which is the stable product when calcium and phosphate ions precipitate from neutral or alkaline solutions. ACP has anti-cariogenic characteristics with the potential for remineralization. Bioactive materials containing ACP stimulate the minerals growth by elevating calcium and phosphate concentrations in the lesion, particularly in acidic oral environments which surpass those in the natural oral fluids. This shift in thermodynamic driving forces promotes apatite formation. ACP sustains supersaturation conditions for prolonged periods. ACP exhibits preventive and restorative properties for applying in dental cements, sealants, composites, and orthodontic adhesives. ACP-filled composite resins restore 71% of minerals lost in demineralized teeth [19].

Material hardness promotes the efficacy of fissure sealants by resisting to deforming forces. The material hardness is associated with fracture resistance, yield strength, and modulus of elasticity. An ideal fissure sealant requires high hardness value [20].

Acid-based glass ionomer cement (GIC) materials have the ability to chemically bond with tooth structure and release fluoride over time. However, the mechanical properties of glass ionomer fissure sealants are weak. Their durability is increased through thermo-curing method. The thermo-curing of acid-based GIC fissure sealants can increase their compressive and flexural strengths, and surface hardness which in turn improve their longevity and clinical performance [21].

The findings of this study exhibited a decrease in microhardness values of all the fissure sealant materials after thermal cycle procedure. The lowest microhardness value was of Clinpro before the thermal cycle procedure (18.27 ± 1.24 VHN), which was consistent with the studies by Beun et al. [22] and Kuşgöz et al. [23]. The decreased microhardness in Clinpro group was observed after the thermal cycle procedure. This decreased microhardness was like Botsalı et al. [24] studies which examined the effects of various light sources on microhardness of fissure sealants. The decreased microhardness values of Ultraseal XT Hydro and Aegis materials after thermal cycle were similar to the results of Güçlü et al. [25].

Dental materials’ surface roughness defines clinical success and aesthetic appearance of the materials. The materials’ high surface roughness increases plaque accumulation on restorations which leads to caries and gingival irritation [26, 27].

The physical properties of fissure sealants in this study are also evaluated through another parameter, i.e., the roughness values before and after thermal cycle procedure. Diverse opinions exist regarding the minimum surface roughness value to prevent bacterial attachment to restoration surface. According to Weitman and Eames, the plaque deposition was observed on composite materials with the surface roughness between 0.7 and 1.44 pm [22]. In Kapoor et al. [28, 29] study, the threshold roughness was determined as 0.2 µm above which the bacterial attachment occurred.

Ra values above the threshold are observed in all fissure sealants regarding roughness values before and after the thermal cycle. The surface roughness of restorative materials is linked to the material content and particle size. The surface roughness increases with the increase in particle size [30, 31, 32]. Accordingly, Beautisealant material containing pre-reacted glass particles has the highest roughness before thermal cycle in this study.

According to Bürger et al. [33] and Cildir et al. [34], the resin containing Clinpro and hydrophilic Ultraseal XT Hydro materials had the lowest roughness values, which were consistent with the roughness values before thermal cycle procedure in this study.

The high wear resistance of restoration affects its efficacy. The biological particles released into oral environment due to abrasion may cause inflammatory response [35]. The amount of wear on materials after chewing simulator procedure is thus evaluated in this study. A study compared the wear rates of three fissure sealants after the aging procedure with weight loss method. Fuji Triage with glass ionomer showed the highest weight loss while Clinpro material had the least [11].

Various in vitro aging methods are applied to predict the issues of restorations in intraoral conditions. Thermal cycling alone is applied for aging in most studies to evaluate the fissure sealants [10, 36, 37]. In two studies, a chewing simulator with thermal cycling was used as the aging method, wherein the microleakage and edge compatibility of resin-containing fissure sealant materials were evaluated [38, 39].

SEM analysis examines the surface properties of materials [40]. The particle sizes and distributions in the materials are observed in SEM images at proper magnification ratios [41, 42]. In this study, the surface properties of fissure sealants before and after the chewing simulation procedure were examined with SEM. The roughness and wear values of fissure sealant materials were compatible with the SEM images. The homogeneous and smooth surface images were observed in Aegis material, and heterogeneous particle structures in Clinpro and Ultraseal XT Hydro materials in the SEM analysis before chewing simulation. The material surfaces after chewing simulation were evaluated to monitor the changes. The particle appearances were declined in all fissure sealant materials, and cracks were observed on irregular surfaces. The most cracks were observed in the order of Clinpro, Aegis, Ultraseal XT Hydro, and Beautisealant material samples. In literature, no study was found regarding the SEM imaging method to examine the surface properties of fissure sealants used in this study. Some studies reported materials showing similar morphological surface patterns in SEM despite differences in mean roughness values [43]. Other studies reported differences and changes in roughness values as observed in SEM images [44].

5. Conclusions

The surface properties of fissure sealant materials after aging procedures were affected in various degrees. The fissure sealant material containing ACP (Aegis) showed the least change than other materials after aging procedures; and the sealant material containing S-PRG (Beautisealant) was found as the second material exhibiting less change after aging procedures. These materials were not affected by aging procedures as much as the resin-based sealant material (Clinpro); thus, they could be used in clinics by postoperative controls. The study findings demonstrated Ultraseal XT Hydro as the most affected material by aging procedures; however, its use with periodic check-ups exhibit advantages in children who cannot provide moisture isolation or requiring special care. In addition to the findings of in vitro studies, the selection of fissure sealant material in children should consider the content, advantages/disadvantages, long-term clinical success rates, specific features of pediatric patient, and individual treatment needs. The findings obtained through in vitro aging procedures should be supported by long-term clinical studies.
