The predictability of arch expansion with the Invisalign First system in children with mixed dentition: a retrospective study

1. Introduction

Orthodontic treatment in children with mixed dentition is important because early treatment can not only correct occlusion but also ensures normal tooth development. Arch expansion is an important mechanism that is often used in children with mixed dentition to correct transverse skeletal and dental discrepancies or to increase the arch perimeter [1]. Expansion of a compressed arch as a method of resolving crowding can increase the arch length, thus providing more space for tooth alignment. It can also improve the transverse dimension of the smile or correct posterior dentoalveolar crossbites [2, 3].

Conventional fixed or removable devices with wires and expansion screws are typically used for arch expansion. However, an increasing number of patients are seeking more aesthetic and comfortable alternatives to conventional orthodontic appliances [4]. With decades of improvements in computer-aided design and manufacturing (CAD/CAM) and dental materials, orthodontic treatment using clear aligners has become increasingly common in many cases, including arch expansion, particularly in adults and teenagers [5, 6, 7]. Compared with fixed appliances, clear aligners have disadvantages related to the inefficiency and unreliability of specific type of tooth movements [8], which can lead to prescribing additional sets of aligner and extended treatment times. However, it has been also reported that clear aligners have advantage such as esthetics [9], less discomfort [10] and better oral hygiene [11]. In 2018, Align Technology Inc. introduced the Invisalign First® (Align Technology Inc., Tempe, AZ, USA) clear aligners designed specifically for younger patients in early mixed dentition. According to Align Technology, Inc., this device can be used to perform phase I orthodontic treatment, including the correction of a narrow arch.

Several studies have reported on the predictability of arch expansion using the Invisalign® system. However, most of the studies were conducted on adolescents or adults with permanent dentition [12, 13, 14, 15], and there are few reports on the early mixed dentition stage where the Invisalign First® system can be used [16, 17]. In addition, there are few studies on the clinical factors that can affect arch expansion [14].

Therefore, the aim of this study was to (1) quantify the predictability of arch expansion in children with early mixed dentition treated with the Invisalign First® system and (2) evaluate the clinical factors for predicting arch expansion.

2. Materials and methods

2.3 Evaluation of predictability of arch expansion

After obtaining patient consent, six digital models were obtained for each patient: (1) pretreatment (initial), (2) predicted, and (3) posttreatment models for both the maxillary and mandibular arches. Pretreatment and posttreatment models were obtained using the iTero® (Align Technology Inc., Tempe, AZ, USA) intraoral scanner, and predicted model from the first ClinCheck® (Align Technology Inc., Tempe, AZ, USA) treatment plan. For each model, four arch-width measurements were taken at the maxillary and mandibular primary canines, first and second primary molars, and first permanent molars. Measurements were taken from each tooth and its antimere at the point on the occlusal surface of each tooth where the long axis intersected the occlusal surface, using the arch width table provided by ClinCheck® software (Invisalign’s proprietary software). The arch width table provided by ClinCheck® software automatically calculated the arch width measurements based on the criteria mentioned above. Predictability of arch expansion was calculated by comparing predicted expansion (predicted arch width - initial arch width) to achieved expansion (post treatment arch width - initial arch width). Predictability was defined as the percentage of predicted expansion achieved: predictability = (achieved expansion)/(predicted expansion) × 100% (Fig. 1).

Fig. 1.An example of measuring arch width and calculating predictability of arch expansion. (A) Pretreatment digital models. (B) Predicted digital models. (C) Posttreatment digital models. (D) Measurements of arch width using arch width table on the ClinCheck® software and calculation of predictability of arch expansion.

3. Results

3.2 Predictability of arch expansion measurement

The distribution of the predictability of arch expansion according to the arch and teeth are shown in Fig. 2. The mean (standard deviation) predictability according to arch was: 63.85 (21.47) % for maxilla, 76.25 (20.14) % for mandible. The mean (standard deviation) predictability of maxillary tooth expansion was: 71.1 (19.5) % for primary canines, 67.5 (18.1) % for first primary molars, 65.2 (17.4) % for second primary molars, 53.4 (25.8) % for permanent first molars. The predictability of the expansion of the mandibular teeth was: 81.1 (17.4) % for primary canines, 81.2 (17.1) % for first primary molars, 77.8 (18.4) % for second primary molars, and 69.4 (21.5) % for first permanent molars. The predictability of arch expansion was significantly higher in the mandibular arch than in the maxillary arch (p < 0.001) and was significantly lower in the permanent first molar compared to primary canine and the first and second primary molars in both the arches.

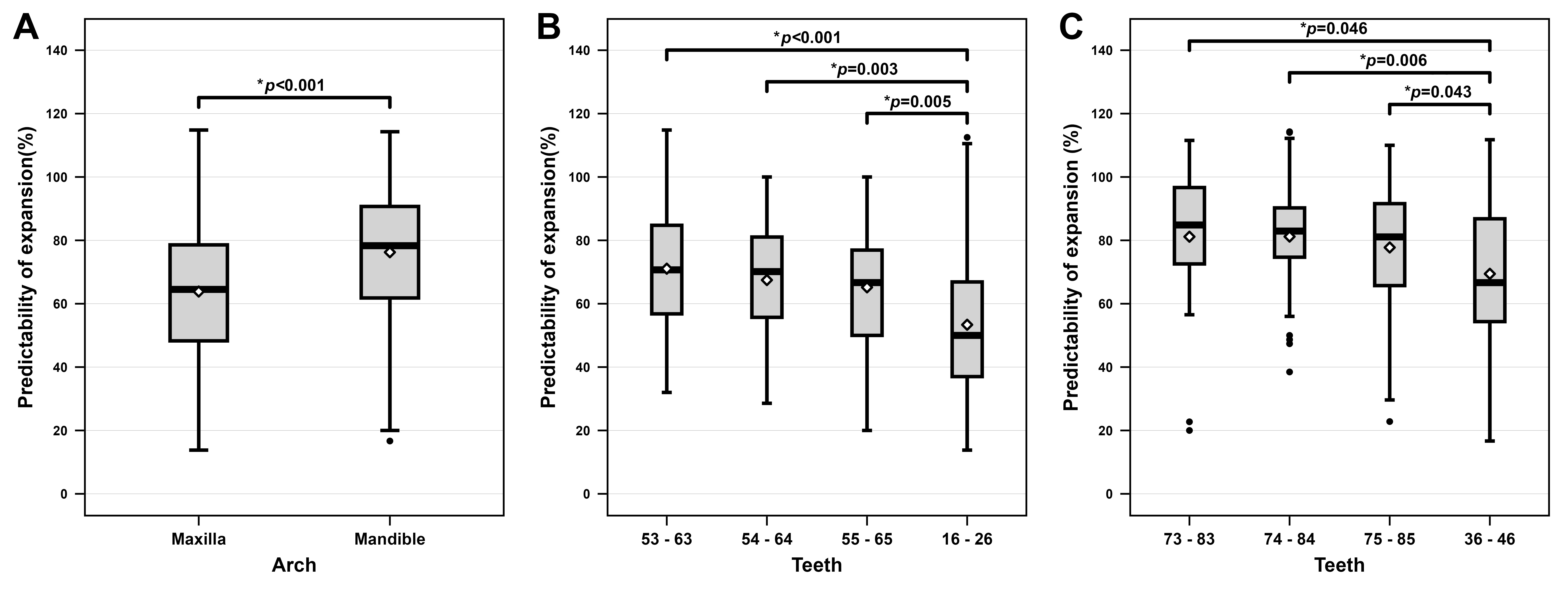

Fig. 2.Box plot of predictability for arch expansion achieved by Invisalign First system. (A) Predictability difference according to arch type (t-test). (B) Predictability difference according to maxillary teeth (ANOVA and Tukey’s post-hoc test). (C) Predictability difference according to mandibular teeth (ANOVA and Tukey’s post-hoc test). *p < 0.05.

3.3 Linear regression analysis

The standard β coefficients and their standard errors for each independent predictor variable as determined via univariate analysis are shown in Tables 2 and 3 for the maxillary and mandibular arches, respectively. The predicted expansion per aligner was associated with the predictability of the upper and lower first permanent molars, second primary molars, and upper primary canines. The number of attachments was associated with the predictability of the upper first permanent and second primary molars.

Table 2.Univariate linear regression analyses for predictability of maxillary arch expansion achieved by Invisalign First system.

Variables	Maxillary teeth
		53–63	54–64	55–65	16–26
		b (SE)	p-value	b (SE)	p-value	b (SE)	p-value	b (SE)	p-value
Gender
	Boys	reference		reference		reference		reference
	Girls	2.80 (5.32)	0.60	0.03 (5.54)	0.99	−0.51 (4.09)	0.90	−5.99 (5.41)	0.27
Age (yr)	2.78 (3.80)	0.47	3.50 (3.43)	0.31	2.70 (2.31)	0.24	−0.23 (3.31)	0.94
Number of pulp treated tooth
	0	reference		reference		reference
	1	−15.63 (14.02)	0.27	−7.20 (6.73)	0.29	−6.54 (5.68)	0.25
	2					−14.29 (12.44)	0.25
Number of crown restoration
	0	reference		reference		reference
	1	−15.63 (14.02)	0.27	1.20 (6.99)	0.86	−4.25 (5.21)	0.42
	2			−6.77 (7.32)	0.36	−10.30 (7.46)	0.17
Number & position of attachment
	No attachment	reference		reference		reference		reference
	1/buccal/unilateral	7.02 (10.40)	0.50	−5.43 (10.67)	0.61	−3.66 (7.79)	0.62
	1/buccal/bilateral	0.09 (6.37)	0.99	−3.18 (8.19)	0.70	4.55 (5.73)	0.43	14.50 (7.37)	0.05
	2/buccal, palatal/bilateral					25.89 (6.84)	<0.01*	25.20 (8.95)	0.01*
Number of eruption compensation well
	0	reference		reference		reference		reference
	1	1.23 (7.86)	0.88	−13.02 (7.13)	0.08	−3.75 (5.57)	0.50	4.94 (7.13)	0.49
	2	3.74 (6.30)	0.56	−2.86 (5.98)	0.64	−8.19 (4.86)	0.10	−5.71 (6.72)	0.40
	3	−12.78 (10.00)	0.21			−12.42 (6.94)	0.08	1.57 (10.03)	0.88
Predicted expansion per aligner	−73.24 (30.43)	0.02*	8.80 (37.01)	0.81	−91.10 (40.02)	0.03*	−134.28 (37.01)	<0.01*
p value from univariate linear regression analysis. *p < 0.05. SE: standard error.

Table 3.Univariate linear regression analyses for predictability of mandibular arch expansion achieved by Invisalign First system.

Variables	Mandibular teeth
		73–83	74–84	75–85	36–46
		b (SE)	p-value	b (SE)	p-value	b (SE)	p-value	b (SE)	p-value
Gender
	Boys	reference		reference		reference		reference
	Girls	−12.16 (8.46)	0.16	0.95 (4.85)	0.85	−2.15 (4.14)	0.61	−7.16 (4.96)	0.15
Age (yr)	1.64 (5.47)	0.77	−0.36 (3.66)	0.92	2.93 (2.41)	0.23	3.75 (2.68)	0.17
Number of pulp treated tooth
	0			reference		reference
	1			3.02 (5.78)	0.60	−1.38 (4.79)	0.77
	2			3.65 (6.93)	0.60	14.79 (13.28)	0.27
Number of crown restoration
	0			reference		reference
	1			−1.55 (7.37)	0.84	3.27 (4.49)	0.47
	2			3.66 (5.38)	0.50	−1.67 (9.65)	0.86
Number & position of attachment
	No attachment	reference		reference		reference		reference
	1/buccal/unilateral	9.95 (23.67)	0.68	7.90 (11.24)	0.49	9.39 (10.60)	0.38
	1/buccal/bilateral	4.10 (17.49)	0.82	−8.00 (6.23)	0.21	−0.69 (9.36)	0.94	4.41 (10.04)	0.66
	2/buccal, lingual/bilateral							12.58 (10.91)	0.25
Number of eruption compensation well
	0	reference		reference		reference		reference
	1	−6.66 (13.93)	0.64	0.80 (5.89)	0.89	1.64 (4.85)	0.74	1.36 (5.84)	0.82
	2					7.15 (6.13)	0.25	11.27 (7.56)	0.14
	3					−14.86 (13.30)	0.27	15.38 (12.82)	0.23
Predicted expansion per aligner	67.59 (73.86)	0.37	28.12 (27.73)	0.32	−77.75 (34.73)	0.03*	−144.42 (54.17)	0.01*
p value from univariate linear regression analysis. *p < 0.05. SE: standard error.

The results of the multivariate linear regression analysis are presented in Table 4 and Fig. 3. The predictability of expansion in the upper first permanent molar significantly increased when one attachment at the buccal surface (p = 0.017) or two attachments at the buccal and palatal surfaces (p < 0.001) were placed on the bilateral teeth compared to the case without attachment. The predictability decreased significantly as the amount of predicted expansion per aligner increased (p < 0.001). In the case of the maxillary second primary molars, the predictability increased when two attachments were placed on the buccal and palatal surfaces of the bilateral teeth compared to the case without attachment (p < 0.001), and the predictability decreased significantly as the amount of predicted expansion per aligner increased (p = 0.014).

Table 4.Multivariate linear regression analysis for predictability of arch expansion achieved by Invisalign First system.

Variables	16–26	55–65
		b (SE)	p-value	b (SE)	p-value
Number & Position of attachment
	No attachment	reference		reference
	1/buccal/unilateral			−2.82 (7.20)	0.697
	1/buccal/bilateral	16.06 (6.62)	0.017	5.47 (5.55)	0.328
	2/buccal, palatal/bilateral	33.48 (8.22)	<0.001	26.33 (6.62)	<0.001
Predicted expansion per aligner	−166.54 (35.34)	<0.001	−88.07 (35.04)	0.014
p value from multivariate linear regression analysis.

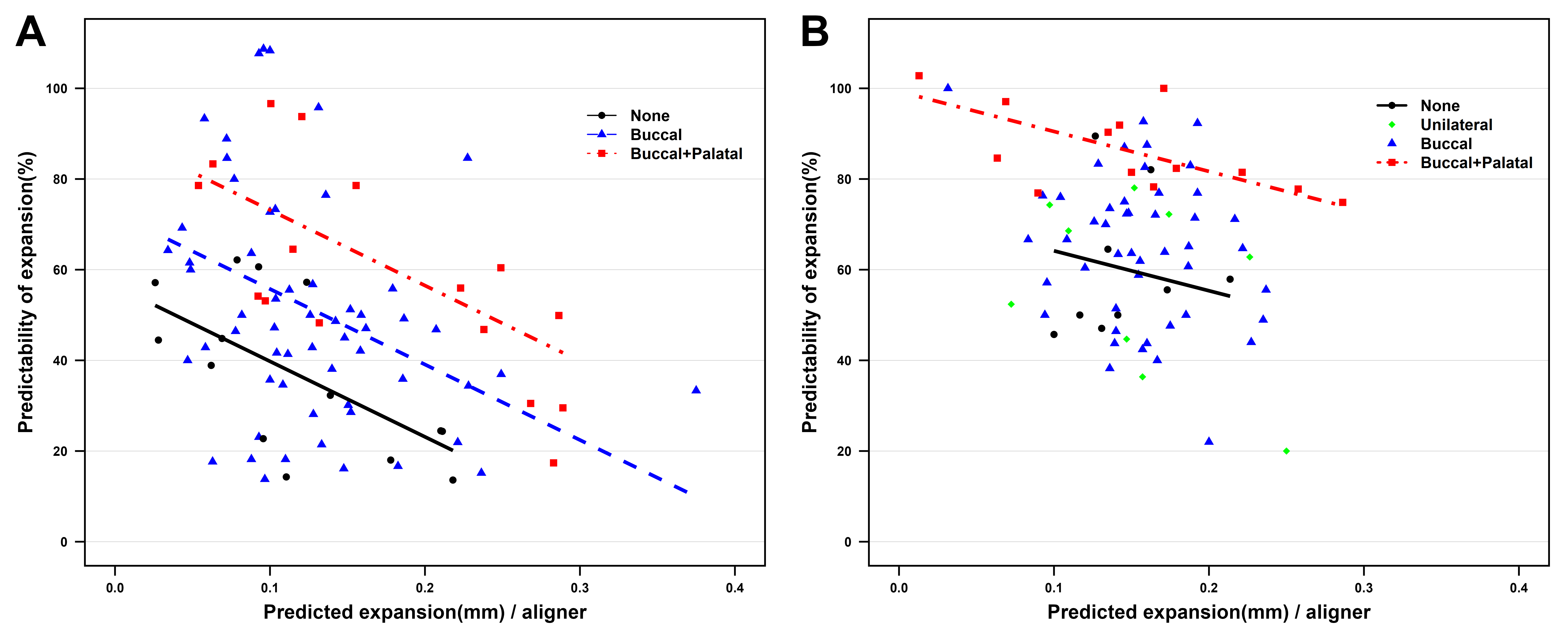

Fig. 3.Distribution of predictability of arch expansion according to the amount of predicted expansion per aligner and the number and position of attachment. (A) Distribution and result of multivariate linear regression analysis on maxillary first permanent molar. (B) Distribution and result of multivariate linear regression analysis on maxillary second primary molar.

4. Discussion

Several studies have suggested that in children, compared to orthodontic treatment using fixed appliances clear aligners might have distinct advantages such as less discomfort [10], less difficulty in eating, easier adaptation to the appliance, improved oral hygiene [18], fewer emergency visits [19], fewer missed school days, and increased self-perception of attractiveness [20]. If the predictability of arch expansion using clear aligners and the clinical variables that influence it can be identified, more comfortable and efficient orthodontic treatments can be offered to children. Therefore, this study aimed to assess the predictability of arch expansion and evaluate the clinical factors affecting it in children with early mixed dentition stage treated with Invisalign First® system.

In this study, clinical variables that could affect tooth movement were selected and examined to determine whether they had a significant effect on arch expansion using clear aligners. Among the primary teeth included in this study, those previously treated with pulpectomy using Vitapex were taken into consideration. Pulpectomy using Vitapex may affect root resorption compared to untreated teeth, which can also impact tooth movement [21, 22]. Crown restoration has a material and crown shape different from that of non-treated teeth, which can also affect tooth movement [23]. Eruption compensation well is a specific feature included in the Invisalign First® system, which allows for the eruption of permanent teeth by using algorithms to predict the size and shape of the teeth [24]. For children in the mixed dentition stage, the permanent teeth do not erupt or partially erupt during treatment; therefore, an eruption compensation well is often included in the aligner design. If the number of eruption compensation wells is increased in the aligner design, this may be related to the retention and deformation of the aligner, which may affect tooth movement. The number and location of attachments has been recognized as an important factor for efficient tooth movement in previous studies [25, 26]. The amount of planned tooth movement per aligner has also been identified as an important factor for movement efficiency in other studies [27].

Regarding the average predictability of arch expansion, expansion in the maxillary arch was generally less predictable than that in the mandibular arch. These findings align with recent studies on arch expansion [12, 13]. This may be due to differences in the buccal-lingual inclination of the upper and lower posterior teeth. The lower posterior teeth are inclined more lingually relative to the occlusal surface compared to the maxillary posterior teeth, especially in children [28]. Studies have reported that the accuracy of arch expansion increases with the initial negative torque of the posterior teeth [14]. However, these findings differ from those reported by Gonçalves et al. [17], who found that the predictability of mandibular arch expansion is less than that of the maxillary arch in patients with mixed dentition. This difference in tendency may be attributed to differences in the age distribution of the samples included in the studies, variation in the amount of arch expansion, the number of aligners used, and the attachment design during treatment planning. The expansion across the first permanent molars was significantly less predictable in both arches. These findings are similar to those of other studies in that the predictability of expansion is greatly reduced in the terminal tooth [12, 13, 14]. This may be due to the limited ability of an aligner to exert orthodontic forces on the terminal tooth, along with the increased root length of the first permanent molars compared to other primary teeth in children.

The results of linear regression analyses revealed that the amount of predicted expansion per aligner was associated with the predictability of upper and lower permanent first molars, second primary molars, and upper primary canines. These findings are similar to those reported by Zhou and Guo [14], who found that the efficiency of tooth movement decreased as the amount of designed expansion increased. If the amount of expected tooth movement per aligner is increased, a force greater than that required for optimal tooth movement may be applied to the teeth [29]. Additionally, the fit of the aligner to the tooth may decrease as more deformation occurs in the aligner. These effects may decrease the predictability of arch expansion.

The number and position of attachments were also associated with the predictability of the expansion of the upper permanent first and primary second molars. Several studies have highlighted the importance of attachment in enhancing tooth movement [25, 27]. The attachments of both the buccal and palatal surfaces of the maxillary posterior teeth can increase the retention of the aligner and help move the teeth more accurately in the horizontal direction [30]. The significant effect of the number of attachments in the maxillary teeth may be due to the disadvantage of retention according to the positional characteristics of the aligners in the maxilla. In addition, this study reported that the predictability of maxillary tooth movement was lower than that of the mandibular teeth; therefore, the effect of the attachment may be more important for maxillary teeth.

One limitation of the present study was that it did not consider the effect of growth on the expansion of the arch. This study was conducted in children aged 7–9 years, and it is possible that transverse growth occurred. However, in this study, the mean interval between before and after treatment with an aligner was 7 months, allowing for less than 0.5 mm spontaneous transverse growth in the maxillary arch for this age group [31]. Another limitation was that the cause of the change was not identified by measuring the amount of expansion achieved (posttreatment arch width - initial arch width) after treatment. During the process of arch expansion in children, changes in arch width can be caused by bodily movement or buccal tipping of the tooth. It has been reported by several studies that arch expansion using Invisalign® is mostly by buccal tipping rather than bodily movement of the tooth [12, 14]. In the cases included in this study, buccal root torque was applied to the teeth according to the same criteria as one operator from the treatment plan to prevent side effects caused by such movements and to move the teeth as much as possible. For a more accurate analysis of tooth movement, measurement of changes at an additional reference point close to the center of resistance of the teeth, or analysis through 3D images, such as cone beam computed tomography, might be required. Furthermore, the patients participating in this study followed the 7-day aligner change protocol, which has been shown to have lower accuracy compared to the 14-day aligner change protocol when accompanied by buccal crown torque and other complex tooth movements [32].

Despite these limitations, the significance of this study is that it presented the predictability of arch expansion through the values of the arch width table of ClinCheck®, which can be easily confirmed. During treatment using Invisalign®, the operator establishes a treatment plan using the ClinCheck® software. If the actual amount of expansion can be predicted through the values of the arch width table, which can be easily checked by the program, it may be helpful in determining the amount of overexpansion or the need for an additional aligner. In addition, we analyzed whether various objective clinical variables commonly encountered when establishing a treatment plan using the Invisalign First® system in children could affect the predictability of arch expansion. Based on the results of this study, if the planned amount of arch expansion increases, the number of aligners can also increase. In addition, increasing the number of attachments may also be considered for more efficient expansion of the maxillary first permanent and second primary molars.

5. Conclusions

When arch expansion is planned in children with early mixed dentition and treated with the Invisalign First® system, the mean predictability was lower in the maxillary arch compared to the mandibular arch, and lower in the first permanent molar compared to the primary canine and first and second primary molars in both the arches. The amount of predicted expansion per aligner and the number of attachments to the maxillary teeth are potential clinical factors that can affect the predictability of arch expansion. If a treatment plan for arch expansion is established considering the accuracy and clinical factors that can affect it, a more efficient and accurate treatment can be performed.
