Journal of Clinical Pediatric Dentistry. 2024; 48(2): 93-101. doi: 10.22514/jocpd.2024.038
Original Research

Examination of surface porosity of current pulp capping materials by micro-computed tomography (micro-CT) method

Burak Dayı1,*,, Muhammet Yalçın1

1Department of Restorative Dentistry, Faculty of Dentistry, Inonu University, 44280 Malatya, Turkey

*Corresponding Author(s):bdayi70@hotmail.com (Burak Dayı)

History Submitted: 06 April 2023 | Accepted: 13 July 2023 | Published: 03 March 2024
Copyright:  ©2024 The Author(s). Published by MRE Press.
This is an open access article under the CC BY 4.0 license (https://creativecommons.org/licenses/by/4.0/).

Collapse table of contents

Abstract

When dental pulp is exposed, it must be covered with a biocompatible material to form reparative dentine. The material used, besides being biocompatible, should have an ideal surface structure for the attachment, proliferation and differentiation of dental pulp stem cells. This study aimed to evaluate the porosity of the microstructures of four pulp capping materials using micro-computed tomography (micro-CT). Biodentine, Bioaggregate, TheraCal and Dycal materials were prepared according to the manufacturer’s instructions using 2 × 9 mm Teflon molds. A total of 60 samples, 15 in each group, were scanned using micro-CT. Open and closed pores and the total porosity of the microstructures of the materials were assessed. The findings obtained from the study were analyzed via the Kruskal-Wallis test followed by the Mann-Whitney U test. The porosity of Bioaggregate was significantly higher than that of Biodentine, Dycal and TheraCal in all porosity values. While Biodentine did not show a statistically significant difference in open and total porosity values from either TheraCal or Dycal, closed porosity values of Dycal were significantly higher than those of Biodentine and TheraCal. Because of the affinity of cells to porous surfaces, the pulp capping materials’ microstructure may affect the pulp capping treatment’s success. From this perspective, the use of Bioaggregate in direct pulp capping may increase the success of treatment.

Keywords:Calcium hydroxide cementCalcium silicate cementsMicro-CTPorosity
PDF(2.42 MB)|EndNote (RIS)|BibTeX|RefMan|RefWorks

Cite this article

Burak Dayı, Muhammet Yalçın. Examination of surface porosity of current pulp capping materials by micro-computed tomography (micro-CT) method. Journal of Clinical Pediatric Dentistry. 2024; 48(2): 93-101. doi: 10.22514/jocpd.2024.038

1. Introduction

Caries are one of the most common chronic diseases in the world. When deep caries is completely removed, pulp exposure may occur [1]. It is thought that pulp exposure that occurs as a result of dental trauma affects approximately 20% of children and adolescents in the permanent dentition period [2]. Direct pulp capping treatment is defined as sealing the exposed pulp area after mechanical or traumatic exposure by directly applying dental materials to protect the pulp and provide the formation of reparative dentine [3]. Direct pulp capping treatment is appropriate for children, teenagers and young adults with primary and permanent teeth diagnosed as having healthy pulp [1]. A previous study demonstrated the success rate of direct pulp capping in primary molars with 84% cariously exposed pulp and suggested direct pulp capping with bioceramics as an acceptable treatment option [4]. In a recent study, pedodontists in Turkey preferred partial pulpotomy with mineral trioxide aggregate (MTA) at a rate of 35% for pulp exposures of 1–2 mm caused by mechanical perforation in young permanent teeth, while 32.9% were treated with direct pulp capping [5]. Direct pulp capping is also recommended by the American Academy of Pediatric Dentistry (AAPD) for pulp exposures smaller than 1 mm in vital primary teeth [6, 7].

Regeneration of the dentine/pulp structure in teeth in which the pulp is exposed requires the use of pulp capping materials that imitate the architecture of the natural dental extracellular matrix and create a suitable environment for the adherence, proliferation, differentiation and biomineralization of dental pulp stem cells (DPSCs) [8, 9]. For this purpose, varied materials, including calcium hydroxide and calcium silicate cements, have been more commonly used in pulp capping treatment [10, 11].

Calcium hydroxide is a traditional pulp capping material and has long been accepted as the gold standard for pulp capping material in dentistry. However, calcium hydroxide can be resorbed over time [12], and when it is used, tunnel defects can cause bacteria and toxins to leak into the pulp, causing the pulp capping treatment to fail [13, 14]. There are several forms of calcium hydroxide, including Dycal, which was developed by L. D. Caulk Co. (Milford, DE, USA). Its main ingredient is calcium hydroxide. Since it is a low-cost material compared to newly emerging pulp capping materials, calcium hydroxide is still extensively used today. MTA is commonly used as an alternative to calcium hydroxide to form direct pulp capping. It has superior biocompatibility and effective sealing ability. However, MTA has major drawbacks, such as slow setting kinetics, dentine discoloration and complicated handling properties [15, 16]. Studies have shown that MTA causes grayish discoloration of the tooth structure [17, 18]. This outcome limits the use of MTA in anterior teeth [17, 18]. Due to these unfavorable effects, calcium silicate-based materials with different structures, such as Biodentine, Bioaggregate and TheraCal, have been introduced in dentistry to overcome some of these drawbacks.

Biodentine is a new calcium silicate-based restorative cement with mechanical properties similar to dentine. Like MTA, it can replace dentine in crowns and roots [19]. It has a beneficial effect on healthy pulp tissue when used directly in pulp capping therapy and stimulates reparative dentine formation [16]. Its main component is tricalcium silicate, and it also contains calcium carbonate and zirconium oxide. Its liquid is a calcium chloride solution containing a water-reduction agent [20].

Bioaggregate contains tricalcium silicate, dicalcium silicate, calcium phosphate monobasic, amorphous silicon dioxide and tantalum pentaoxide, which replaces the bismuth oxide used in traditional MTA for radiopacity [19]. Unlike conventional MTA, it contains no aluminum, which reduces its toxic effects on tissues [21]. Studies have shown comparable bioactivity, biocompatibility and sealing ability of Bioaggregate to those of MTA [19, 21, 22].

TheraCal (Bisco, Schaumburg, IL, USA) is a novel resin-containing light-cured calcium silicate-based material that acts as a pulp-capping material in vital pulp treatment. It has been stated that, much like other calcium silicate-based materials, TheraCal provides superior sealing and strong bioactivity in the pulp exposure area [23].

The extracellular matrix in the body is a three-dimensional (3D) network with nanostructures. Nanostructured architecture for tissue regeneration provides better microenvironments for cell adhesion, proliferation and differentiation [24]. Hence, biomaterials with micro- or nanostructured architecture have been developed and used in tissue engineering studies [25, 26]. This finding indicates that pores and porosities within the physical structure of the pulp capping materials may also be important in the success of pulp capping treatment, in addition to the importance of biocompatibility and the ability to stimulate the formation of reparative dentine. To the best of our knowledge, no study in the literature has evaluated the porosity of pulp capping materials for its importance in pulp capping treatment. Therefore, in this in vitro study, the aim was to evaluate and compare the porosity of four pulp capping materials using micro-computed tomography (micro-CT) and correlate their porosities with their effects as reported in previous pulp capping studies.

2. Materials and methods

2.1 Preparation of samples

The materials used in the study and their contents are given in Table 1.

Table 1.Composition of pulp capping materials.
Material nameContentsManufacturer
Dycal
Base: 1,3-Butylene glycol disalicylateDentsply Caulk, Milford, DE, USA
Zinc oxide
Calcium phosphate
Calcium tungstate
Iron oxide pigments
Catalyst: Calcium hydroxide
N-ethyl-o/p-toluene sulfonamide
Zinc oxide
Titanium dioxide
Zinc stearate
Iron oxide pigments (dentine color only)
TheraCal LC
Type III Portland cementBisco, Inc, Schaumburg IL, USA
Sr glass
Fumed silica
Barium sulfate
Bisphenol A glycidylmethacrylate
Poly dimethacrylate
Barium zirconate
Biodentine
Powder: Tricalcium silicateSeptodont, Saint-Maur-des-fossés Cedex, France
Dicalcium silicate
Calcium carbonate
Calcium oxide
Iron oxide
Zirconium oxide
Liquid: Calcium chloride
Hydrosoluble polymer
Distilled water
Bioaggregate
Tricalcium silicateInnovative Bioceramics, Vancouver, Canada
Dicalcium silicate
Tantalum pentoxide
Monobasic calcium phosphate
Amorphous silicon dioxide

In brief, all test materials were prepared following the manufacturer’s instructions and then placed in Teflon molds (diameter: 9 mm, height: 2 mm) with the help of a carrier. Fifteen samples of each material were created (Fig. 1A). The materials were allowed to set: 4 hours for Bioaggregate, 12 minutes for Biodentine, 2 minutes for Dycal and immediately for TheraCal, because it polymerizes with the use of light from a II-generation light emitting diode (LED) light-curing device (Guilin Woodpecker Medical Instrument Co. Guilin, China; light intensity: 1200 mW/cm2). Materials requiring time to set were kept at 37 °C in a 100% humidity environment.

2.2 Assessment of porosity

The characterization of the surface porosity of the materials was analyzed by micro-computed tomography (micro-CT) (Skyscan-Bruker 1172, Kontich, Belgium). After adjusting the camera’s pixel size to 9 μm, the voltage to 100 kV, the milliampere to 100, the reconstructor rotation angle to 360°, and the rotation angle to 2°, all samples were scanned for approximately one hour. Images were reconstructed using NRecon software (version 1.6.10.6, Skyscan, Kontich, Belgium) (Fig. 1B). The volume of open and closed pores on the surface of the objects formed in three dimensions, as well as the percentage volume of the porosity, was examined using the CT Analyser program (version 1.16.4.1, Skyscan, Kontich, Belgium).

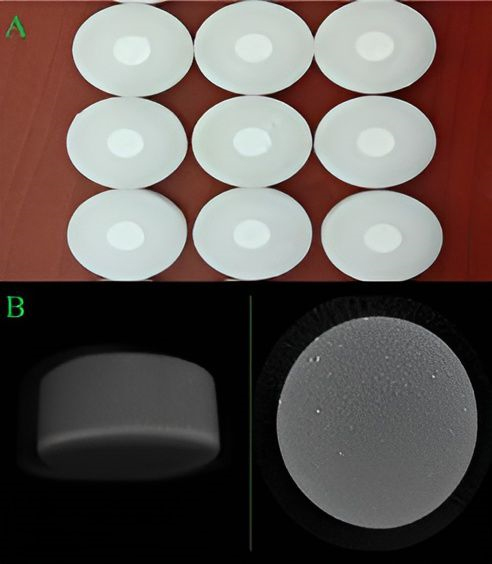

Preparation of samples and scanning for analysis. (A) Materials prepared in Teflon molds. (B) Micro-CT scanned image of a sample.

Fig. 1.Preparation of samples and scanning for analysis. (A) Materials prepared in Teflon molds. (B) Micro-CT scanned image of a sample.

2.3 Volume of pores

The pores in the material, starting from a circular surface and forming a whole space on the other surface, are called closed pores. If the pores in the material begin from a surface and form half a gap, they are called open pores. The volume of the open and closed pores was calculated separately as a percentage. The sum of the open and closed pores gives the porosity of the materials.

2.4 Data analysis

IBM SPSS Statistics 22 for Windows software (IBM Corp. Released 2013. Version 22.0. Armonk, NY, USA: IBM Corp.) was used to carry out the statistical evaluation of the data obtained from the study. A non-parametric Kruskal-Wallis test was utilized since the quantitative data of the groups did not display normal distribution (p < 0.05). Significant differences among the groups were determined with the Kruskal-Wallis test (p < 0.05). The Bonferroni corrected Mann-Whitney U test was applied for pairwise comparisons of the groups. The significance levels were determined to be 0.008 for the Bonferroni corrected Mann-Whitney U test and 0.05 for other overall analyses.

3. Results

Significant differences among the groups were identified in open, closed and total porosity values (p < 0.05; Kruskal-Wallis H test). Results demonstrated that the porosity of Bioaggregate was significantly higher than Biodentine, Dycal and TheraCal materials in all porosity values (p < 0.008; Bonferroni corrected Mann-Whitney U test) (Table 2, Fig. 2).

Table 2.Descriptive statistics of pulp capping materials.
Porosity (%)GroupnMean PercentageStd. DeviationMinimumMaximum
Open
Bioaggregate155.47a3.161.9613.14
Biodentine150.04b0.030.020.12
Dycal150.14b0.140.010.41
Theracal150.07b0.110.000.35
Total601.432.810.0013.14
p* value0.0095
Closed
Bioaggregate153.29a0.721.964.55
Biodentine150.13b0.080.050.31
Dycal150.27c0.160.080.64
Theracal150.09b0.110.010.38
Total600.941.410.014.55
p* value0.0085
Total
Bioaggregate158.59a2.566.0915.52
Biodentine150.21b0.090.090.36
Dycal150.35b0.200.050.75
Theracal150.59b1.690.016.67
Total602.433.890.0115.52
p* value0.0096
*Kruskal-Wallis test; a, b, c: Letters in the column show a significant difference (p < 0.008; Bonferroni corrected Mann-Whitney U test).
Graphical representation of the groups for each porosity values.

Fig. 2.Graphical representation of the groups for each porosity values.

While Biodentine did not show statistically significant differences in open and total porosity values as compared to TheraCal and Dycal materials (p > 0.008), Dycal was significantly higher in closed porosity values compared to Biodentine and TheraCal (p < 0.008) (Table 1).

The micro-CT images of the material interface are shown in Fig. 3. Bioaggregate was observed to be a much more porous structure than the others (Fig. 3A,B).

Micro-CT images of the materials’ microstructure. (A,B) Bioaggregate, (C,D) Biodentine, (E,F) Dycal, (G,H) TheraCal (20× magnification).

Fig. 3.Micro-CT images of the materials’ microstructure. (A,B) Bioaggregate, (C,D) Biodentine, (E,F) Dycal, (G,H) TheraCal (20× magnification).

4. Discussion

The materials used in pulp capping treatment have to be biocompatible and provide a suitable microenvironment for dental pulp stem cells (DPSCs) to regenerate the dentine–pulp complex. In dentine–pulp regeneration, the success of the pulp capping treatment can be increased via the development of pulp capping materials with structures that allow DPSCs to adhere and create reparative tissues [27]. In one study, a three-dimensional nanofibrous gelatin scaffold with high porosities was created that mimics the nanostructure and chemical content of the dental extracellular matrix. The in vitro study showed that the nanofibrous gelatin scaffold offered a microenvironment superior to that of standard gelatin equivalents for cell adhesion, proliferation and differentiation [28]. In another study, Gupte and Ma [29] stated that porous scaffolds allow precursor cells to migrate into the material, providing a suitable environment for them to adhere, spread and proliferate. Bordini et al. [9] stated that the increase in cell proliferation in porous chitosan-calcium-aluminate scaffolds, when compared with scaffolds containing only chitosan, may be related not only to the scaffold composition but also to the scaffold architecture. Based on these studies, the porous structure of the pulp capping materials may increase the adhesion, proliferation and differentiation of the DPSCs for reparative dentine formation. Therefore, in this study, we compared the porosities of the four current pulp capping materials using micro-CT and correlated their porosities with their effects in previous pulp capping studies.

The presence of biologically active, semiporous material placed on the exposed pulp may increase the activation of DPSCs, cell colonization in areas adjacent to the material, and the formation of reparative dentine. The high rate of calcium release and apatite formation are the signals that appear at different times for DPSCs. This situation may explain the role and function of the calcium silicate biomaterials that stimulate the formation of new reparative tissues and clinical healing [30]. Therefore, in the present study, we preferred to use Biodentine, TheraCal and Bioaggregate as the new calcium silicate materials.

Calcium hydroxide is the traditional pulp capping material, and it has been accepted as the gold standard of pulp capping material for a very long time. The first outcome of calcium hydroxide placement on the exposed pulp area is the appearance of superficial necrosis due to its high potential of hydrogen (pH) (12.5) [31, 32]. When necrosis occurs, the pulp is stimulated to defend and mend itself by creating a reparative dentine bridge via the processes of cellular differentiation, extracellular matrix secretion and mineralization [32]. In the study by Modena et al. [31], calcium hydroxide was much more cytotoxic, reduced cell metabolism of cultured human dental pulp fibroblasts, and caused severe cell death. Canoğlu et al. [33] evaluated the success of direct pulp capping of primary molars with calcium hydroxide and mineral trioxide aggregate (MTA) after hemorrhage control with different solutions. Their study found the clinical success rate of MTA to be 98.3%, while the success of calcium hydroxide was 89.7%. Since it is a lower-cost material than newly emerging pulp capping materials, it continues to be used extensively today. Therefore, in this study, we used Dycal, a calcium hydroxide paste, to compare with calcium silicate-based materials.

Recent studies have shown that Bioaggregate is non-toxic to osteoblasts and human periodontal ligament cells, and it enhances mineralization and odontoblastic differentiation (concerning human DPSCs) [34, 35, 36, 37]. In a study comparing the effects of ProRoot MTA, Biodentine and Bioaggregate on the formation of reparative dentine, the dental pulps of rats were covered with these materials, and the formation of the reparative tissue was examined histologically, immunohistochemically and with the use of micro-CT after four weeks [38]. Favorable effects on reparative processes were observed in all materials. The relative ratio of newly formed reparative dentine on micro-CT analysis was lower in Bioaggregate compared to MTA and Biodentine. However, Bioaggregate revealed a dense mineralized dentine on histological analysis [38]. The present study showed that the porosity of Bioaggregate was superior to other materials. This greater porosity of Bioaggregate may be a contributing factor in the dense mineralized dentine formation with Bioaggregate reported in the study by Kim et al. [38]. Kayad et al. [39] used a rabbit model to compare the effects of TheraCal and Biodentine on direct pulp capping. TheraCal created a dentine bridge in the second week, while Biodentine created a significantly thicker dentine bridge in the first and second weeks. The results of a randomized clinical trial showed that TheraCal was less successful than Biodentine but better than Dycal when evaluated clinically and radiographically [40]. Alazrag et al. [41] stated that the biocompatibility of TheraCal as a furcation perforation repair material is lower than that of MTA-Angelus and Biodentine. Kunert et al. [42] investigated the biocompatibility of commercially available bioactive materials. They found the cytotoxicity of TheraCal to be quite high compared to other bioactive materials. Collado-González et al. [43] stated that stem cells from human exfoliated primary teeth adhere and spread well on the surface of MTA-Angelus and Biodentine due to the good porosity of their microstructures. Another study comparing MTA with Biodentine revealed that Biodentine exhibited a greater capacity to increase the viability, adhesion and migration of human DPSCs [44]. The results of these studies demonstrate that calcium silicate-based Biodentine and Bioaggregate can be alternatives to MTA in the formation of reparative tissues for vital pulp therapies.

A study employing micro-CT to compare retrograde filling using Biodentine, Bioaggregate and MTA showed that the porosity of Biodentine was lower (in acidic pH) than that of the other materials, as in this study [45]. Similar to our study, Al-Sherbiny et al. [46] found Biodentine to be the material with the lowest open porosity. They also examined the porosity of capping materials, including Biodentine and MTA. Another study, in which the porosity of calcium silicate-based materials, including Bioaggregate and Biodentine, was examined by mercury porosimetry, found that the porosity of Bioaggregate was higher than that of Biodentine [47]. Similarly, we found that Bioaggregate had significantly higher porosity values than Biodentine and other materials tested. In a study investigating the porosity of calcium silicate-based materials, the porosity of TheraCal was found to be similar to Biodentine [30]. Notably, Biodentine did not show statistically significant differences from TheraCal in any porosity values in the current study.

The results of a study comparing the success of TheraCal and Dycal in direct pulp capping showed no significant difference between the two materials [48]. Grewal et al. [12] compared the direct contact of Biodentine and Dycal to dentine tissue in pulpotomy treatment and reported that Biodentine provided significantly thicker reparative dentine formation. Jalan et al. [49] also stated that Biodentine provides thicker and more continuous tertiary dentine formation than calcium hydroxide. In the present study, when we compared the porosities of calcium hydroxide, TheraCal and Biodentine, we found no significant difference between the materials in their open and total porosity values. However, there was a significant excess of Dycal from Biodentine and TheraCal in the closed-pore ratio. This reveals that the porosity of capping materials, as well as various other properties, affect the success of pulp capping.

The success of capping treatments also depends heavily on the physical and mechanical characteristics of the pulp capping materials. Majeed et al. [50] evaluated the push-out bond strength and surface microhardness of Biodentine, Bioaggregate and ProRoot MTA in coronal and apical root dentine. Of the three, Bioaggregate showed greater stable bond strength (0% adhesive-type bond failure) but inferior mechanical characteristics and bond strength [50]. Kucukyıldız et al. [51] found Dycal to be considerably lower than MTA-Angelus in terms of the microhardness value in their study. When TheraCal, Biodentine and MTA-Angelus were evaluated in terms of marginal adaptation, the highest frequency distribution of gap presence was observed in TheraCal, while the lowest ratio was seen in Biodentine [41]. The results of the same study showed that TheraCal had the lowest solubility, while Biodentine had the highest. The presence of resin in the structure of TheraCal may have reduced its biocompatibility and marginal adaptation while reducing its solubility [41]. Gupta et al. [52] stated that Biodentine as a root-end filling material caused less microleakage than Bioaggregate and MTA. However, no significant difference was observed between Bioaggregate and Biodentine.

The clinical usability of capping materials should also be considered. When evaluated in terms of clinical use, Biodentine takes 12–13 minutes to set, which is considerably less time than MTA (2.20–2.45 hours). Bioaggregate sets in 4 hours and requires permanent restoration after the final set. If the final restoration must be placed on the same treatment, a long setting time becomes a clinical disadvantage [53]. Dycal sets in approximately 2 minutes after application, whereas TheraCal is light-cured, which is advantageous for these materials. The bond strength of the capping material to the restorative material is also an important factor for clinical success. A recent review stated, despite the absence of data for some calcium silicate cements such as Bioaggregate, that Biodentine has a higher bond strength to the dentinal wall than other studied calcium silicate cements when blood is present [54]. Raina et al. [55] evaluated the bond strength of Dycal, MTA Plus, Biodentine and TheraCal in self-adhering and bulk-fill flowable composites and found that the lowest bond strength value occurred in Dycal, while the highest was with TheraCal in both groups. When comparing Biodentine and MTA, Biodentine showed a higher bond strength value than MTA. TheraCal’s resin-based structure, which facilitates chemical adhesion and forms a robust interface between TheraCal and the bonding material, may be responsible for the high bonding strength of the product.

The search for new alternative solutions for pulp capping continues. Qiu et al. [56] stated that the calcium salt of 4-methacryloxyethyl trimellitate acid (4-MET), a novel bioactive adhesive monomer called CMET, exhibits advantageous biocompatibility and odontogenic induction potential. CMET may be a very promising adjuvant for pulp-capping materials. Franzin et al. [57] evaluated the mechanical, physicochemical and antimicrobial properties of a novel pulp capping material based on sodium trimetaphosphate. The experimental groups were two micro-(mTMP) and two nanoparticulate sodium trimetaphosphate (nTMP) groups, each containing zirconium oxide (ZrO2), and a solution containing either chitosan or titanium oxide (TiO2) nanoparticles (NPs). The compressive strength was higher and the setting time was shorter in the nTMP-containing groups, and those that contained TiO2 nanoparticles also exhibited antimicrobial properties. Utilizing bioactive compounds in pulp capping agents has the potential to promote quick and more effective pulp capping [58]. Novel chitosan membranes with microspheres containing transforming growth factor beta 1 (TGF-β1) for pulp capping provided 3–6 times more reparative dentine than Dycal or chitosan bilayer membranes without TGF [59]. Experiments on acute pulp repair in rats demonstrated the superior dentine regeneration characteristics of Zn-doped bioactive glass (BGz) micro-nano spheres when utilized as a pulp capping agent [60].

The limitations of this study were: 1. The positive effect of the materials directly on pulp capping was evaluated based only on their porosity. However, pulp capping material affects the success of pulp capping due to many other features. 2. The relationship between the porosity ratio, compressive strength and microleakage of the materials used in the study was not evaluated. Increasing porosity may lead to the failure of pulp capping by reducing the strength of the material under pressure and causing microleakage. For these reasons, comprehensive in vivo studies are needed to evaluate the degree of the effect of the porosity of pulp capping materials on the success of pulp capping treatment.

According to the results of this in vitro study, Bioaggregate was found to be superior to the other pulp capping materials in terms of porosity. In previous in vivo studies [27, 38] conducted on Bioaggregate, it was observed that this material yielded successful results in the formation of reparative dentine. Since the DPSCs, which play a role in forming reparative dentine, can be positioned in the porous structure of Bioaggragate, its porous structure may also play a role in the success of pulp capping treatment. However, in in vivo studies [12, 33, 39, 40, 48, 49] performed with other, less porous pulp capping materials, successful results were obtained. Thus, further studies should be conducted to determine which properties of the materials used in the pulp capping treatment primarily affect the success.

5. Conclusions

The high surface porosity of Bioaggregate may be a factor that increases the chance of successful pulp capping treatment by providing better adhesion and proliferation of human dental pulp cells.

Availability of data and materials

The data presented in this study are available on reasonable request from the corresponding author.

Author contributions

BD and MY—designed the research study. BD—performed the research; wrote the manuscript. MY—analyzed the data. All authors read and approved the final manuscript.

Ethics approval and consent to participate

Not applicable.

Acknowledgment

We would like to thank the Scientific and Technological Research Council of Turkey (TÜBİTAK).

Funding

This work was funded by the Scientific and Technological Research Council of Turkey (TÜBİTAK), Grant No: 215S159.

Conflict of interest

The authors declare no conflict of interest.

References

Coll JA. Primary and permanent teeth treated with direct pulp capping. In Fuks AB, Moskovitz M, Tickotsky N (eds.) Contemporary Endodontics for Children and Adolescents (pp. 187–200). 1st Edn. Springer: Cham. 2023.

[Google Scholar]

Andersson L. Epidemiology of traumatic dental injuries. Journal of Endodontics. 2013; 39: S2–S5.

[Google Scholar]

Bogen G, Dammaschke T, Chandler N. Vital pulp therapy. In Berman LH, Hargreaves KM (ed.) Cohen’s pathways of the pulp (pp. 902–938). 12th edn. Elsevier Health Sciences: Canada. 2020.

[Google Scholar]

Chatzidimitriou K, Vadiakas G, Koletsi D. Direct pulp capping in asymptomatic carious primary molars using three different pulp capping materials: a prospective clinical trial. European Archives of Paediatric Dentistry. 2022; 23: 803–811.

[Google Scholar]

Topçuoğlu G, Aydınbelge M. The evaluation of diagnosis and treatment approaches of a group of Turkish pedodontists. Selcuk Dental Journal. 2021; 8: 591–599. (In Turkish)

[Google Scholar]

American Academy of Pediatric Dentistry. Pulp therapy for primary and immature permanent teeth. American Academy of Pediatric Dentistry: Chicago. 2022.

[Google Scholar]

Dhar V, Marghalani AA, Crystal YO, Kumar A, Ritwik P, Tulunoglu O, et al. Use of vital pulp therapies in primary teeth with deep caries lesions. Pediatric Dentistry. 2017; 39: 146–159.

[Google Scholar]

Wang S, Hu Q, Gao X, Dong Y. Characteristics and effects on dental pulp cells of a polycaprolactone/submicron bioactive glass composite scaffold. Journal of Endodontics. 2016; 42: 1070–1075.

[Google Scholar]

Bordini EAF, Cassiano FB, Silva ISP, Usberti FR, Anovazzi G, Pacheco LE, et al. Synergistic potential of 1α,25-dihydroxyvitamin D3 and calcium-aluminate-chitosan scaffolds with dental pulp cells. Clinical Oral Investigations. 2020; 24: 663–674.

[Google Scholar]

Camilleri J, Pitt Ford TR. Mineral trioxide aggregate: a review of the constituents and biological properties of the material. International Endodontic Journal. 2006; 39: 747–754.

[Google Scholar]

Cushley S, Duncan HF, Lappin MJ, Chua P, Elamin AD, Clarke M, et al. Efficacy of direct pulp capping for management of cariously exposed pulps in permanent teeth: a systematic review and meta‐analysis. International Endodontic Journal. 2021; 54: 556–571.

[Google Scholar]

Grewal N, Salhan R, Kaur N, Patel HB. Comparative evaluation of calcium silicate-based dentin substitute (Biodentine®) and calcium hydroxide (pulpdent) in the formation of reactive dentin bridge in regenerative pulpotomy of vital primary teeth: triple blind, randomized clinical trial. Contemporary Clinical Dentistry. 2016; 7: 457–463.

[Google Scholar]

Mohammadi Z, Dummer PM. Properties and applications of calcium hydroxide in endodontics and dental traumatology. International Endodontic Journal. 2011; 44: 697–730.

[Google Scholar]

Cox CF, Sübay RK, Ostro E, Suzuki S, Suzuki SH. Tunnel defects in dentin bridges: their formation following direct pulp capping. Operative Dentistry. 1996; 21: 4–11.

[Google Scholar]

Guven EP, Yalvac ME, Sahin F, Yazici MM, Rizvanov AA, Bayirli G. Effect of dental materials calcium hydroxide-containing cement, mineral trioxide aggregate, and enamel matrix derivative on proliferation and differentiation of human tooth germ stem cells. Journal of Endodontics. 2011; 37: 650–656.

[Google Scholar]

Arandi NZ, Thabet M. Minimal intervention in dentistry: a literature review on Biodentine as a bioactive pulp capping material. BioMed Research International. 2021; 2021: 5569313.

[Google Scholar]

Tripathi R, Cohen S, Khanduri N. Coronal tooth discoloration after the use of white mineral trioxide aggregate. Clinical, Cosmetic and Investigational Dentistry. 2020; 12: 409–414.

[Google Scholar]

Hu X, Li Y, Xu J, Li Q, Wang R. Immature permanent incisors with complicated crown fractures treated with partial pulpotomy using white mineral trioxide aggregate and IRoot BP plus-a retrospective long-term study. Dental Traumatology. 2023; 39: 165–172.

[Google Scholar]

Madfa AA, Al-Sanabani FA, Al-Kudami NHAQ. Endodontic repair filling materials: a review article. British Journal of Medicine and Medical Research. 2014; 4: 3059–3079.

[Google Scholar]

Active Biosilicate TechnologyTM. BiodentineTM Scientific file. 2012. Available at: https://www.septodont.in/sites/in/files/2016-12/Case%20Studies%2001%20BD_2.pdf (Accessed: 19 June 2023).

[Google Scholar]

Zhu L, Yang J, Zhang J, Peng B. A comparative study of BioAggregate and ProRoot MTA on adhesion, migration, and attachment of human dental pulp cells. Journal of Endodontics. 2014; 40: 1118–1123.

[Google Scholar]

Leal F, De-Deus G, Brandão C, Luna AS, Fidel SR, Souza EM. Comparison of the root-end seal provided by bioceramic repair cements and white MTA. International Endodontic Journal. 2011; 44: 662–668.

[Google Scholar]

Kunert M, Lukomska-Szymanska M. Bio-inductive materials in direct and indirect pulp capping-a review article. Materials. 2020; 13: 1204.

[Google Scholar]

Qu T, Liu X. Nano-structured gelatin/bioactive glass hybrid scaffolds for the enhancement of odontogenic differentiation of human dental pulp stem cells. Journal of Materials Chemistry B. 2013; 1: 4764–4772.

[Google Scholar]

Leite ML, Anselmi C, Soares IPM, Manso AP, Hebling J, Carvalho RM, et al. Calcium silicate-coated porous chitosan scaffold as a cell-free tissue engineering system for direct pulp capping. Dental Materials. 2022; 38: 1763–1776.

[Google Scholar]

Mendes Soares IP, Anselmi C, Kitagawa FA, Ribeiro RAO, Leite ML, de Souza Costa CA, et al. Nano-hydroxyapatite-incorporated polycaprolactone nanofibrous scaffold as a dentin tissue engineering-based strategy for vital pulp therapy. Dental Materials. 2022; 38: 960–977.

[Google Scholar]

Dayi B, Sezlev Bilecen D, Eröksüz H, Yalçın M, Hasırcı V. Evaluation of a collagen-bioaggregate composite scaffold in the repair of sheep pulp tissue. European Oral Research. 2021; 55: 152–161.

[Google Scholar]

Liu X, Ma PX. Phase separation, pore structure, and properties of nanofibrous gelatin scaffolds. Biomaterials. 2009; 30: 4094–4103.

[Google Scholar]

Gupte MJ, Ma PX. Nanofibrous scaffolds for dental and craniofacial applications. Journal of Dental Research. 2012; 91: 227–234.

[Google Scholar]

Gandolfi MG, Siboni F, Botero T, Bossù M, Riccitiello F, Prati C. Calcium silicate and calcium hydroxide materials for pulp capping: biointeractivity, porosity, solubility and bioactivity of current formulations. Journal of Applied Biomaterials & Functional Materials. 2015; 13: 43–60.

[Google Scholar]

Modena KCDS, Calvo AM, Sipert CR, Colombini-Ishikiriama BL, Dionísio TJ, Navarro MFL, et al. Molecular response of pulp fibroblasts after stimulation with pulp capping materials. Brazilian Dental Journal. 2020; 31: 244–251.

[Google Scholar]

Schröder U. Effects of calcium hydroxide-containing pulp-capping agents on pulp cell migration, proliferation, and differentiation. Journal of Dental Research. 1985; 64: 541–548.

[Google Scholar]

Canoğlu E, Güngör HC, Uysal S. Direct pulp capping of primary molars with calcium hydroxide or MTA following hemorrhage control with different medicaments: randomized clinical trial. Pediatric Dentistry. 2022; 44: 167–173.

[Google Scholar]

Wang MC, Yeh LY, Shih WY, Li WC, Chang KW, Lin SC. Portland cement induces human periodontal ligament cells to differentiate by upregulating miR-146a. Journal of the Formosan Medical Association. 2018; 117: 308–315.

[Google Scholar]

Yuan Z, Peng B, Jiang H, Bian Z, Yan P. Effect of bioaggregate on mineral-associated gene expression in osteoblast cells. Journal of Endodontics. 2010; 36: 1145–1148.

[Google Scholar]

Zhang S, Yang X, Fan M. BioAggregate and iRoot BP Plus optimize the proliferation and mineralization ability of human dental pulp cells. International Endodontic Journal. 2013; 46: 923–929.

[Google Scholar]

Jung JY, Woo SM, Lee BN, Koh JT, Nör JE, Hwang YC. Effect of Biodentine and Bioaggregate on odontoblastic differentiation via mitogen-activated protein kinase pathway in human dental pulp cells. International Endodontic Journal. 2015; 48: 177–184.

[Google Scholar]

Kim J, Song YS, Min KS, Kim SH, Koh JT, Lee BN, et al. Evaluation of reparative dentin formation of ProRoot MTA, Biodentine and BioAggregate using micro-CT and immunohistochemistry. Restorative Dentistry & Endodontics. 2016; 41: 29–36.

[Google Scholar]

Kayad M, Koura A, El-Nozahy A. A comparative histological study of the effect of TheraCal LC and biodentine on direct pulp capping in rabbits: an experimental study. Clinical Oral Investigations. 2023; 27: 1013–1022.

[Google Scholar]

Peskersoy C, Lukarcanin J, Turkun M. Efficacy of diferent calcium silicate materials as pulp-capping agents: randomized clinical trial. Journal of Dental Sciences. 2021; 16: 723–731.

[Google Scholar]

Alazrag MA, Abu-Seida AM, El-Batouty KM, El Ashry SH. Marginal adaptation, solubility and biocompatibility of TheraCal LC compared with MTA-angelus and biodentine as a furcation perforation repair material. BMC Oral Health. 2020; 20: 298.

[Google Scholar]

Kunert M, Rozpedek-Kaminska W, Galita G, Sauro S, Bourgi R, Hardan L, et al. The cytotoxicity and genotoxicity of bioactive dental materials. Cells. 2022; 11: 3238.

[Google Scholar]

Collado-González M, García-Bernal D, Oñate-Sánchez RE, Ortolani-Seltenerich PS, Álvarez-Muro T, Lozano A, et al. Cytotoxicity and bioactivity of various pulpotomy materials on stem cells from human exfoliated primary teeth. International Endodontic Journal. 2017; 50: e19–e30.

[Google Scholar]

Tomás-Catalá CJ, Collado-González M, García-Bernal D, Oñate-Sánchez RE, Forner L, Llena C, et al. Biocompatibility of new pulp-capping materials NeoMTA plus, MTA repair HP, and Biodentine on human dental pulp stem cells. Journal of Endodontics. 2018; 44: 126–132.

[Google Scholar]

Akinci L, Simsek N, Aydinbelge HA. Physical properties of MTA, BioAggregate and Biodentine in simulated conditions: a micro-CT analysis. Dental Materials Journal. 2020; 39: 601–607.

[Google Scholar]

Al-Sherbiny IM, Farid MH, Abu-Seida AM, Motawea IT, Bastawy HA. Chemico-physical and mechanical evaluation of three calcium silicate-based pulp capping materials. The Saudi Dental Journal. 2021; 33: 207–214.

[Google Scholar]

Camilleri J, Grech L, Galea K, Keir D, Fenech M, Formosa L, et al. Porosity and root dentine to material interface assessment of calcium silicate-based root-end filling materials. Clinical Oral Investigations. 2014; 18: 1437–1446.

[Google Scholar]

Cengiz E, Yilmaz HG. Efficacy of erbium, chromium-doped: yttrium, scandium, gallium, and garnet laser irradiation combined with resin-based tricalcium silicate and calcium hydroxide on direct pulp capping: a randomized clinical trial. Journal of Endodontics. 2016; 42: 351–355.

[Google Scholar]

Jalan AL, Warhadpande MM, Dakshindas DM. A comparison of human dental pulp response to calcium hydroxide and Biodentine as direct pulp-capping agents. Journal of Conservative Dentistry. 2017; 20: 129–133.

[Google Scholar]

Majeed A, AlShwaimi E. Push-out bond strength and surface microhardness of calcium silicate-based biomaterials: an in vitro study. Medical Principles and Practice. 2017; 26: 139–145.

[Google Scholar]

Kucukyildiz EN, Dayi B, Altin S, Yigit O. In vitro comparison of physical, chemical, and mechanical properties of graphene nanoplatelet added Angelus mineral trioxide aggregate to pure Angelus mineral trioxide aggregate and calcium hydroxide. Microscopy Research and Technique. 2021; 84: 929–942.

[Google Scholar]

Gupta R, Kewalramani R. In-vitro evaluation of microleakage of bioceramic root-end filling materials: a spectrophotometric study. Journal of Oral Biology and Craniofacial Research. 2021; 11: 330–333.

[Google Scholar]

Zafar K, Jamal S, Ghafoor R. Bio-active cements-Mineral Trioxide Aggregate based calcium silicate materials: a narrative review. Journal of the Pakistan Medical Association. 2020; 70: 497–504.

[Google Scholar]

Alipour M, Faraji Gavgani L, Ghasemi N. Push-out bond strength of the calcium silicate-based endodontic cements in the presence of blood: a systematic review and meta-analysis of in vitro studies. Clinical and Experimental Dental Research. 2022; 8: 571–582.

[Google Scholar]

Raina A, Sawhny A, Paul S, Nandamuri S. Comparative evaluation of the bond strength of self-adhering and bulk-fill flowable composites to MTA Plus, Dycal, Biodentine, and TheraCal: an in vitro study. Restorative Dentistry & Endodontics. 2020; 45: e10.

[Google Scholar]

Qiu Y, Saito T. Novel bioactive adhesive monomer CMET promotes odontogenic differentiation and dentin regeneration. International Journal of Molecular Sciences. 2021; 22: 12728.

[Google Scholar]

Franzin NRS, Sostena MMDS, Santos ADD, Moura MR, Camargo ER, Hosida TY, et al. Novel pulp capping material based on sodium trimetaphosphate: synthesis, characterization, and antimicrobial properties. Journal of Applied Oral Science. 2022; 30: e20210483.

[Google Scholar]

Whitehouse LL, Thomson NH, Do T, Feichtinger GA. Bioactive molecules for regenerative pulp capping. European Cells and Materials. 2021; 42: 415–437.

[Google Scholar]

Li F, Liu X, Zhao S, Wu H, Xu HH. Porous chitosan bilayer membrane containing TGF-β1 loaded microspheres for pulp capping and reparative dentin formation in a dog model. Dental Materials. 2014; 30: 172–181.

[Google Scholar]

Li Z, Xie K, Yang S, Yu T, Xiao Y, Zhou Y. Multifunctional Ca-Zn-Si-based micro-nano spheres with anti-infective, anti-inflammatory, and dentin regenerative properties for pulp capping application. Journal of Materials Chemistry B. 2021; 9: 8289–8299.

[Google Scholar]
