Retrospective evaluation of upper mesiodentes by using 3D cone beam computed tomography scans: a cross-sectional study

1. Background

Supernumerary teeth are a dental anomaly in which a person has more than the number of teeth both in primary and/or permanent dentition. In other words, it can be defined as the presence of more than the normal number of teeth or odontogenic structures on the upper and/or lower dental arches [1, 2, 3, 4, 5, 6]. Supernumerary teeth may remain impacted in any region of the maxilla/mandible or may have partially or totally erupted into the oral cavity [4, 5, 6, 7]. Although there is no definitive explanation for the etiology of supernumerary teeth, various theories have been proposed, including dichotomy of tooth bud, hyperactivity of the dental lamina, and a combination of genetic and environmental factors [8, 9, 10]. Also, there were previous studies stating that increased Wingless-related integration site (WNT)/β-catenin and Sonic Hedgehog (SHH) signaling and various syndromes are associated with the formation of supernumerary teeth [10, 11, 12].

Mesiodentes are generally defined as supernumerary teeth located between the maxillary central incisors [1, 2]. The presence of a mesiodens is likely to cause various complications such as over-retained primary teeth, delayed eruption, or eruption anomalies of permanent incisors in the anterior maxilla, pathological root resorption of the adjacent permanent teeth, or cystic degeneration of the mesiodens [13, 14, 15]. Therefore, early diagnosis of a mesiodens is very essential to prevent irreversible damage to the anterior maxillary region. However, it is very difficult to make a decision on the appropriate timing for extraction of the mesiodens. On the other hand, there is no consensus on the optimal age or timing for surgical removal of mesiodentes [13, 16]. There were previous studies indicating that early extraction has various advantages over late extraction [17]. However, early extraction may not be the correct decision for a mesiodens that is centrally located, normally impacted, conical is shape, has a high probability of eruption, and is situated above the apex of the adjacent tooth. One of the most important problems with surgical removal of the mesiodens at an early age is the possible noncooperation of the patient [17, 18, 19, 20]. In this case, surgical extraction under general anesthesia would be necessary, or the patient would need to be followed up until a later period. Another negativity is the risk of damage to the adjacent developing permanent incisors and their roots by surgical extraction of the mesiodens [17, 18, 19, 20, 21, 22]. The American Academy of Pediatric Dentistry recommends postponing the extraction of the mesiodens to avoid irreversible surgical trauma to the root apex of the developing adjacent incisors until at least two-thirds of the root of the adjacent incisors has developed. Therefore, since not every age may be suitable for the surgical extraction of diagnosed mesiodentes, detailed follow-up of these teeth using appropriate imaging methods is very important to prevent further complications [15, 16, 17, 18, 19, 20, 21, 22].

Radiological examination plays an important role in the diagnosis and treatment planning of mesiodens. Cone Beam Computed Tomography (CBCT) is used as an effective diagnostic tool for the evaluation of mesiodens [23]. It can provide important data about the position, eruption direction, morphology, condition of adjacent teeth, and the anatomical structures regarding the mesiodens. CBCT is also a useful tool for planning surgical operations after mesiodens diagnosis [24]. Since different surgical approaches have advantages, disadvantages, and applicability conditions, preoperative CBCT examination is recommended for an appropriate surgeon approach according to the characteristics of the mesiodens [25, 26].

CBCT provides the closest data to reality in a 3 dimensional (3D) environment; consequently, this study aimed to investigate the frequency of mesiodentes in the anterior maxilla in a group of Turkish children between the ages of 4 and 15 and to analyze factors such as age, sex, eruption status and direction, tooth shape, and associated complications by using 3-dimensional CBCT.

2. Methods

2.4 Evaluation of the findings

Findings regarding age, sex, number of supernumerary and mesiodens teeth, proximity to anatomical structures, shape of mesiodens, location characteristics, and associated complications were recorded. While evaluating the proximity to anatomical structures, the distances to the incisive canal and nasal cavity were examined as anatomical landmarks. Mesiodens shapes were classified into four groups: incisor round, conical, and tuberculate. In the evaluation of localization characteristics, the adjacent teeth were noted, and the direction of the mesiodens (horizontal, inverted, normal, and inclined) was also evaluated. In addition, the findings were evaluated in terms of complications due to the presence of mesiodens. Complications of adjacent permanent central incisors were classified as causing eruption anomalies (outside dental arch position), rotation, dilaceration, and diastema. Additionally, hyperplastic follicles and cysts were considered complications in the adjacent area of mesiodentes.

The positions of the mesiodens were evaluated separately in the frontal, sagittal, and axial planes. The mesiodens classification was made according to the mesiodens classification determined by Goksel et al. [28] in their study where they investigated the positions of the mesiodentes in three-dimensional planes using CBCT scans.

- The mesiodistal positions of the mesiodentes in the frontal plane were classified as Type A (straight long axis and no slope), Type B (crown in the midline, root in the distal), and Type C (root in the midline, crown in the distal) (Fig. 1A).

- Superioinferior positions of the mesiodentes in the sagittal plane, displayed in Fig. 1B, are classified as Type I (fully erupted), Type II (partially erupted), Type III (impacted and in contact with the central incisor), Type IV (impacted and not in contact with the central incisor), Type V (in contact with the nasal cavity), and Type VI (in contact with the nasal septum).

- Anteroposterior positions of mesiodentes in the axial plane, displayed in Fig. 1C, are classified as Type a (from the labial to the dental arch), Type b (in the direction of the dental arch), Type c (in front of the nasopalatine canal, in contact with the nasopalatine canal), Type d (behind the nasopalatine duct and touching the nasopalatine duct), and Type e (behind the nasopalatine duct and not contacting the nasopalatine duct).

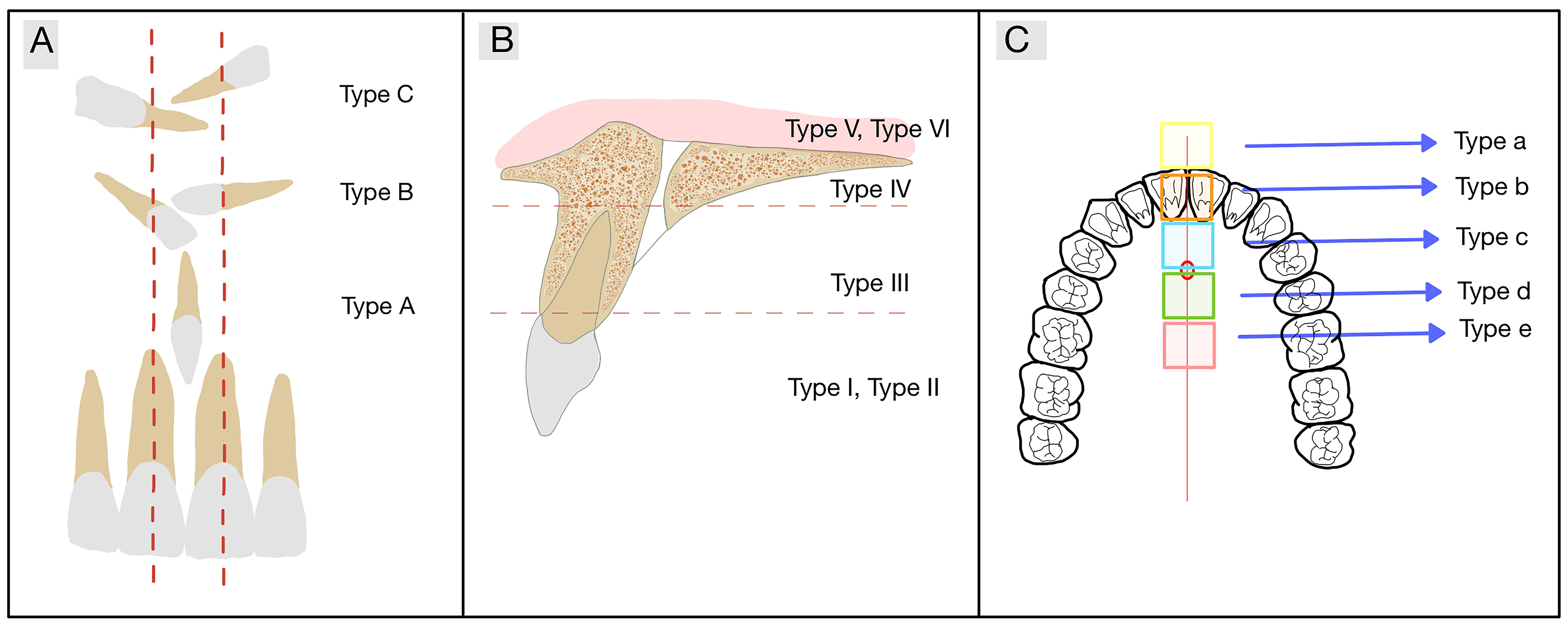

Fig. 1.Schematization of the mesiodens classification. (A) Illustration of the mesiodens classification in the frontal plane. (B) Illustration of the mesiodens classification in the sagittal plane. (C) Illustration of the mesiodens classification in the axial plane.

3. Results

A total of 45 (21.7%) patients out of 207 had mesiodentes. The Frequency of mesiodens teeth was higher in males (27.9% of the total) than in females (11.5% of the total). When cases with mesiodens were evaluated within themselves, 80% of the cases with mesiodens were male and 20% were female. A statistically significant difference was observed between the sexes and the presence of mesiodens (p = 0.0095) (Table 1, Figs. 2,3,4,5). Logistic regression analysis revealed that male sex was associated with higher odds of having mesiodens (Odds Ratio (OR) = 2.97; 95% Confidence Interval (CI): 0.26–6.57), although this result was not statistically significant. Also, a total of 58 mesiodentes were detected in 45 patients. While 13 patients (28.9%) had two mesiodentes, 32 patients (71.1%) displayed evidence of one mesioden.

Fig. 2.Radiographs of a sample case showing mesiodens causing eruption problems in permanent teeth. (A) Panoramic radiographic image. The position of the mesiodens could not be clearly observed. (B) 3D reconstruction image. (C) Axial CBCT image. Mesiodens was observed to the right of the midline. (D) Coronal CBCT image. (E) Sagittal CBCT image (blue arrows pointed to tooth #11, red arrows pointed to mesiodens).

Fig. 3.Radiographs of a sample case showing mesiodens without complications in permanent teeth. (A) Panoramic radiographic image. Mesiodens could not be observed clearly due to superposition of the hard palate. (B) Axial CBCT image. Mesiodens was observed in the midline inverted position. (C) Sagittal CBCT image. (D) Coronal CBCT image (red arrows pointed to mesiodens).

Fig. 4.Radiographs of a sample case showing mesiodens causing complications in permanent teeth. (A) Panoramic radiographic image. Mesiodens was observed in the midline. (B) Axial CBCT image. Eruption problems and hyperplastic follicle were observed in tooth number #21. (C) Coronal CBCT image. (D) Sagittal CBCT image. Mesiodens was observed in the midline inverted position. (E) 3D reconstruction image (green arrows pointed to tooth #21, red stars pointed to mesiodens).

Fig. 5.Radiographs of a sample case showing mesiodens causing complications (eruption problem, hyperplastic follicle) in permanent teeth. (A) Periapical radiographic image. The mesiodens in the buccal position (blue star) was clearly observed, but the mesiodens located in the palatal position (red stars) could not be clearly observed. (B) 3D reconstruction image. (C,D) Coronal CBCT image. (E) Axial CBCT image. A total of 3 mesiodens were observed, 1 (blue star) on the buccal and 2 (red stars) on the palatal of tooth number #11(green arrow). (F,G) Coronal CBCT image. (H) Sagittal CBCT image. (I) 3D reconstruction image (lateral). (J) 3D reconstruction image (posterior) (green arrows pointed to tooth #11, red and blue stars pointed at mesiodens).

The ages of the patients diagnosed with mesiodens ranged from 9 to 15 years old, and the mean age was 12.42 years (Table 2). There was no significant difference in age distribution between cases with and without mesiodens (p = 0.200) (Table 2).

Characteristics of the mesiodentes were based on the number of teeth. Most of the mesiodens (63.8%) were in close contact with the incisive canal, while the majority were closely associated with the right and left upper permanent central incisors (44.8% and 51.7%, respectively). Additionally, nearly half of the mesiodens diagnosed in this study were conical in shape (48.3%). In terms of orientation, almost half of the mesiodentes were in normal position (44.8%), 22.4% were inverted, and 22.4% were inclined (Table 3).

The classification of mesiodens according to their location was analyzed based on the number of teeth. Additionally, for each classification type, the number of teeth belonging to male and female patients was indicated. According to the classification in the frontal plane, Type A had the highest incidence rate (65.5%). According to the axial classification, Type C, which is in front of the nasopalatine duct and associated with the duct, had the highest incidence rate (58.6%). In the sagittal plane, the highest incidence rate was found to be Type III (70.7%) (Table 4).

In the current study, mesiodentes were also evaluated for their associated complications. Complications were analyzed based on the number of teeth. Additionally, for each complication, it was indicated how many of the teeth with complications belonged to male patients and how many belonged to female patients. While 20.7% of the diagnosed mesiodentes had no complications, 31.0% had eruption anomalies. In 13.8% of the mesiodentes, eruption anomalies and rotations were combined and detected, while eruption anomalies, hyperplastic follicles, and cysts were combined and detected in 10.3%. Additionally, eruption anomalies, rotation, hyperplastic follicles, and cysts were considered a combination in 3.4% of mesiodentes (Table 5).

There was no statistically significant difference between sexes in terms of complication rates (p = 0.077). Although not statistically significant, the complication rate was higher in males (89.1%) compared to females (10.9%). The odds of complications were 4.1 times higher in males than females (OR = 4.1; 95% CI: 0.9–18.7), though this result did not reach statistical significance (Table 6).

Regarding age groups, the complication rate was higher in the 11–15 age group (71.7%) compared to the 9–10 age group (28.3%). The p-value was close to the threshold for statistical significance (p = 0.051). The odds of complications were 1.36 times higher in the 11–15 age group (OR = 1.36; 95% CI: 1.1–1.6), and the confidence interval did not include 1, suggesting a potentially meaningful association despite the marginal p-value (Table 6).

4. Discussion

In the current study, mesiodentes were evaluated on the basis of sex, age, relation of mesiodens to anatomical landmarks and adjacent teeth, shape characteristics, location classifications, and various related complications. According to previous dentistry literature, sex has been reported as an important indicator for mesiodens cases. Previous data suggested that mesiodentes were likely to be observed more frequently in males than females. Kim et al. [19] reported that the diagnosis of mesiodens was 71.7% in males and 28.3% in females. Similarly, Ersin et al. [29] emphasized that the mesiodens in males was three times higher than in females. In this study, 80.0% of the patients with mesiodens were male. Similar to the current study, Kolçakoğlu et al. [20] reported that mesiodens was diagnosed in 76.6% of males and Akay et al. [30] reported that it was detected in 74% of males in previous CBCT scans. Also, Itaya et al. [31] stated that 182 (75.2%) of 242 mesiodens diagnosed in their study were in males. However, in contrast, Colak et al. [32] stated that the prevalence of mesiodens was higher in females than in males. Mesiodens is more commonly diagnosed in males, as suggested by the additional data in the literature; additionally, there were also reports stating that mesiodens was more commonly diagnosed in females. The higher prevalence of mesiodens in males may be attributed to genetic predisposition, possibly involving autosomal dominant inheritance with incomplete penetrance, where not all gene carriers exhibit the trait. Additionally, hyperactivity of the dental lamina is thought to contribute by inducing the formation of extra tooth buds, leading to the development of supernumerary teeth [33, 34].

Patient age is an important parameter in the diagnosis of mesiodens, just like sex. Kim et al. [19] reported that the mean age of the cases was 6.8 years (82.52 ± 12.67 months) in their study, which included 293 Korean children diagnosed with mesiodens between the ages 4 and 10. The age factor has a very close relationship with the population included in the study methodology and the study design, and whether the study was conducted in a pediatric dental patient group is decisive in this regard. Indeed, the current study included previously obtained CBCT images of pediatric patients aged between 4 and 15 years, and the age of patients diagnosed with mesiodens ranged from 9 to 15 years (mean 12.42 years). Kolçakoğlu et al. [20] reported the mean age at diagnosis of mesiodens as 8.75 years in their retrospective study of CBCT images of patients aged 7–14 years. Although the ages at the time that mesiodentes were detected in this study were specified, these were the ages at the time that CBCT images were taken. This is an important limitation for the studies with this type of retrospective research design. Therefore, these ages should not be considered to be the onset age of mesiodens in these cases. However, pediatric dental patients in this age group generally undergo dental examinations regarding tooth eruption for the maxillary central incisors. Therefore, it is thought that the age of the onset and the diagnosis of mesiodens would be similar or correlated; however, it can be strongly emphasized that further and long-term prospective clinical studies addressing the correlation between the age of the diagnosis and the onset are needed.

Kazanci et al. [35], in a retrospective study of panoramic radiographs of 3351 pediatric dental patients examined, reported that 80% of the cases diagnosed with mesiodens had a single (one) mesiodens. Gündüz et al. [36] reported this rate as 76.8%, while Kim et al. [19] reported it as 69.2%. In the current study, 13 patients (28.9%) had two mesiodentes, 32 patients (71.1%) showed evidence of one mesiodense. In this context, the higher proportion of patients with a single mesiodense in the current study was consistent with previous studies in literature.

In the current study, the localizations of mesiodentes were evaluated in three different planes. Accordingly, the diagnosed mesiodentes were mostly localized in the area classified with Type A (straight long axis and no slope) in the frontal plane. Similarly, Goksel et al. [28] reported that 60% of the mesiodentes diagnosed on CBCT were localized in Type A. Kolçakoğlu et al. [20] also reported that the mesiodens they detected on CBCTs were mostly of type A classification in the frontal plane. In the sagittal plane, the highest incidence rate was found to be Type III (impacted and in contact with the central incisor). Similarly, this finding is similar to previous studies in the literature [20, 28]. When the dentistry literature was examined, it was seen that in the classification of the axial plane, mesiodens teeth were usually in Type B (in the direction of the dental arch) and Type C (in front of the nasopalatine canal, in contact with the nasopalatine canal). In this study, the diagnosed mesiodentes were mostly localized in the area classified with Type C. Similarly, Goksel et al. [28] reported that 46.15% of mesiodentes were localized in Type C, and in contrast, Kolçakoğlu et al. [20] reported that 71.3% of mesiodentes were localized in Type B. In this context, it was found that most of the diagnosed mesiodentes were in close relation with the nasopalatine canal, and the majority of them were impacted.

The shapes of mesiodentes were classified as incisor-like, conical, round, and tuberculated. As in most of the previous studies, the conical shape was the most common in the current study, followed by incisor-like and tuberculated [19, 20, 28]. In contrast, Akay et al. [30] stated that the rate of incisor-like mesiodentes was 38.5%, followed by the conical, the round, and the tuberculated types. Also, Leyland et al. [22] stated that tuberculate-type supernumeraries were the most frequent, followed by the conical type. On the other hand, although many of the similar mesiodens studies in the literature included results in terms of shape, it is more valuable to examine the clinical significance. Tuberculated-form mesiodentes lead to eruption anomalies or complications, whereas conical teeth more commonly displace the adjacent teeth [19, 22].

The most common complication in the current study was eruption anomalies. These were followed by eruption anomalies with rotation combination and eruption anomalies with hyperplastic follicles and also cyst combination. The complication rates found in this study were mostly consistent with the previous literature [19, 20, 28, 29]. Additionally, odds ratios were calculated to evaluate the risk of complications in relation to sex and age. Being male increased the risk 4.1 times, while being in the 11–15 age group increased the risk 1.36 times, although neither association reached statistical significance.

This study has some strengths and limitations. The main strength of the current study is the evaluation of previously taken CBCT scans and the ability to perform a 3D evaluation that provides the opportunity to examine adjacent anatomical and dental structures in detail. However, due to the age of the patients included in the study, the sample size was lower, as tomographic examination with higher radiation doses is less frequently employed due to ethical considerations in this patient group. In this context, since only 45 cases with 58 mesiodens were identified in the study methodology, a regression analysis could not be performed to determine how much other variables associated with mesiodens constitute a risk of complications. However, further, and comprehensive investigations on this subject are recommended.

5. Conclusions

Within the limitations of this study, the findings obtained revealed that mesiodentes were closely associated with the anatomical structures and the adjacent teeth, which may cause various complications, and were diagnosed more frequently in males compared to females. On the other hand, further and broader-scale study designs are needed to confirm these results.
