Journal of Clinical Pediatric Dentistry. 2025; 49(6): 48-57. doi: 10.22514/jocpd.2025.126
Original Research

Morphological evaluation of the chin and symphysis and its relationship with occlusal planes in skeletal Class II malocclusions

Lixueer Yan1, Haibin Jin1, Jiayi Wang1, Shuying Liu1, Yiting Chu1, Xu Wang1, Aixiu Gong1,*,

1Department of Stomatology, Children’s Hospital of Nanjing Medical University, 210003 Nanjing, Jiangsu, China

*Corresponding Author(s):gongax2023@njmu.edu.cn (Aixiu Gong)

History Submitted: 17 December 2024 | Accepted: 18 February 2025 | Published: 03 November 2025
Copyright:  ©2025 The Author(s). Published by MRE Press.
This is an open access article under the CC BY 4.0 license (https://creativecommons.org/licenses/by/4.0/).

Collapse table of contents

Abstract

Background: To investigate the correlation between the inclination of occlusal planes (OPs) and the morphologies of the chin and mandibular symphysis in skeletal Class II malocclusion. Methods: This retrospective study utilized cone beam computed tomography (CBCT) to explore the relationship of the occlusal plane (OP) inclinations with the chin and mandibular symphysis in different skeletal patterns. A total of 150 children aged 6–12 years were recruited for this study. The included cases were categorized into three groups: normodivergent skeletal Class I malocclusion (IN), normodivergent skeletal class II malocclusion (IIN) and hyperdivergent skeletal Class II malocclusion (IIH). Each group consisted of 50 individuals. Results: In terms of the contours of the chin and mandibular symphysis, the IN group had the broadest and shortest shapes, whereas the IIH group had the thinnest and tallest morphologies. No significant differences in chin volume were found among the three groups. Compared with those in IN group, the anterior occlusal plane (AOP) and posterior occlusal plane (POP) were steeper in the groups with skeletal Class II malocclusion. In addition, there was a negative correlation between the OPs and the height and width of the chin and mandibular symphysis, as well as the position of the chin. Conclusions: In individuals with skeletal Class II malocclusion, the development of the height and width of the chin and mandibular symphysis may be related to the inclination of the OPs.

Keywords:Occlusal plane;Anterior occlusal plane;Posterior occlusal plane;Chin;Mandibular symphysis;Skeletal Class II malocclusion;CBCT
PDF(2.5 MB)|EndNote (RIS)|BibTeX|RefMan|RefWorks

Cite this article

Lixueer Yan, Haibin Jin, Jiayi Wang, Shuying Liu, Yiting Chu, Xu Wang, Aixiu Gong. Morphological evaluation of the chin and symphysis and its relationship with occlusal planes in skeletal Class II malocclusions. Journal of Clinical Pediatric Dentistry. 2025; 49(6): 48-57. doi: 10.22514/jocpd.2025.126

1. Introduction

The chin is a unique characteristic feature of a human face, which is in the region of the anterior-inferior mandibular symphysis [1]. Variations in chin position and shape have an impact on facial contours, which is crucial for the harmonious appearance of facial features [2]. The mandibular symphysis has been found to function as a predictor of the direction of mandibular growth [3].

Previous studies have shown that the shapes of the chin and mandibular symphysis are related to numerous factors such as genetics [4], chewing pressure [5], lower incisor inclination [6, 7] and the angle class [8]. Vertically, dolichofacial types have long and narrow mandibular symphyses; while brachyfacial types have short and wide mandibular symphyses [9]. The height of the mandibular symphysis is strongly correlated with the anterior facial height [10]. Sagittally, individuals with protruding mandibles have shorter and wider mandibular symphyses. Conversely, individuals with receding mandibles have taller and thinner mandibular symphyses [11]. The chin width in individuals with skeletal Class II malocclusion tends to be smaller than that in those with skeletal Class I and III malocclusions [10]. Investigations have shown that chin and mandibular symphysis morphologies are correlated with skeletal patterns.

With respect to skeletal Class II malocclusions, the patients’ profile is characterized mostly by mandibular retrusion [12]. The application of functional appliances in adolescents with skeletal mandibular retrusion has been widely recognized to improve facial aesthetics and oral function [13]. The mandibular position may be affected by the occlusal plane, and the occlusal plane is steeper in skeletal Class II patients and flatter in skeletal Class III patients [14, 15]. As the occlusal plane is steeper, the soft and hard tissues of the pogonion are more posteriorly located than the Gysi Anterior Lingual Line (GALL) and Terry’s Vertical Line (TVL) [16]. However, the occlusal plane (OP), which is not a straight but a curved line, is divided into the anterior occlusal plane (AOP) and the posterior occlusal plane (POP) [17]. The relationships between the AOP and POP tilt and the position and morphology of the chin require further exploration.

In this study, we explored the relationships between the inclination of the OPs and the position and shape of the chin and mandibular symphysis in individuals with skeletal Class II malocclusion. This may be helpful for early treatment of skeletal Class II children with functional appliances. Most of the existing studies used lateral cephalogram to measure the two-dimensional linear indices of the chin and mandibular symphysis. In this study, CBCT was used to measure the three-dimensional indices of chin volume in patients with different skeletal patterns.

2. Materials and methods

2.1 Subjects

A total of 150 participants, comprising 66 males and 84 females, were recruited for this study in the Stomatology Department of the Children’s Hospital of Nanjing Medical University from February 2022 to January 2024.

2.2 Inclusion criteria

(1) Age between 6 and 12 years;

(2) Skeletal Class I (0° < ANB (Angle between Nasion-A point and Nasion-B point) < 5°) or skeletal Class II (ANB >5°) malocclusion [18];

(3) Normodivergent malocclusion (27° ≤ SN-MP (Sella-Nasion plane to Mandibular Plane angle) ≤ 37°) or hyperdivergent malocclusion (SN-MP >37°) [19].

2.3 Exclusion criteria

(1) No history of orthodontic treatment;

(2) No systematic disease; and

(3) No facial asymmetry and no tilted chin.

2.4 Groups

The 150 participants were divided into three groups, with each group consisting of 50 individuals. The three groups were as follows:

(1) Normodivergent skeletal Class I malocclusion (IN);

(2) Normodivergent skeletal Class II malocclusion (IIN); and

(3) Hyperdivergent skeletal Class II malocclusion (IIH).

2.5 Three-dimensional images

Newtom VG was used for orthodontic examination. The cone-bone computed tomography (CBCT) data in DICOM (Digital Imaging and Communications in Medicine) format were exported into Dolphin Imaging 11.9.5 (Dolphin Imaging & Management Solutions, Chatsworth, CA, USA).

2.6 Chin and mandibular symphysis measurements

Two-dimensional measurements of both the chin and the mandibular symphysis were made in a midsagittal section of the mandible [20] (Fig. 1).

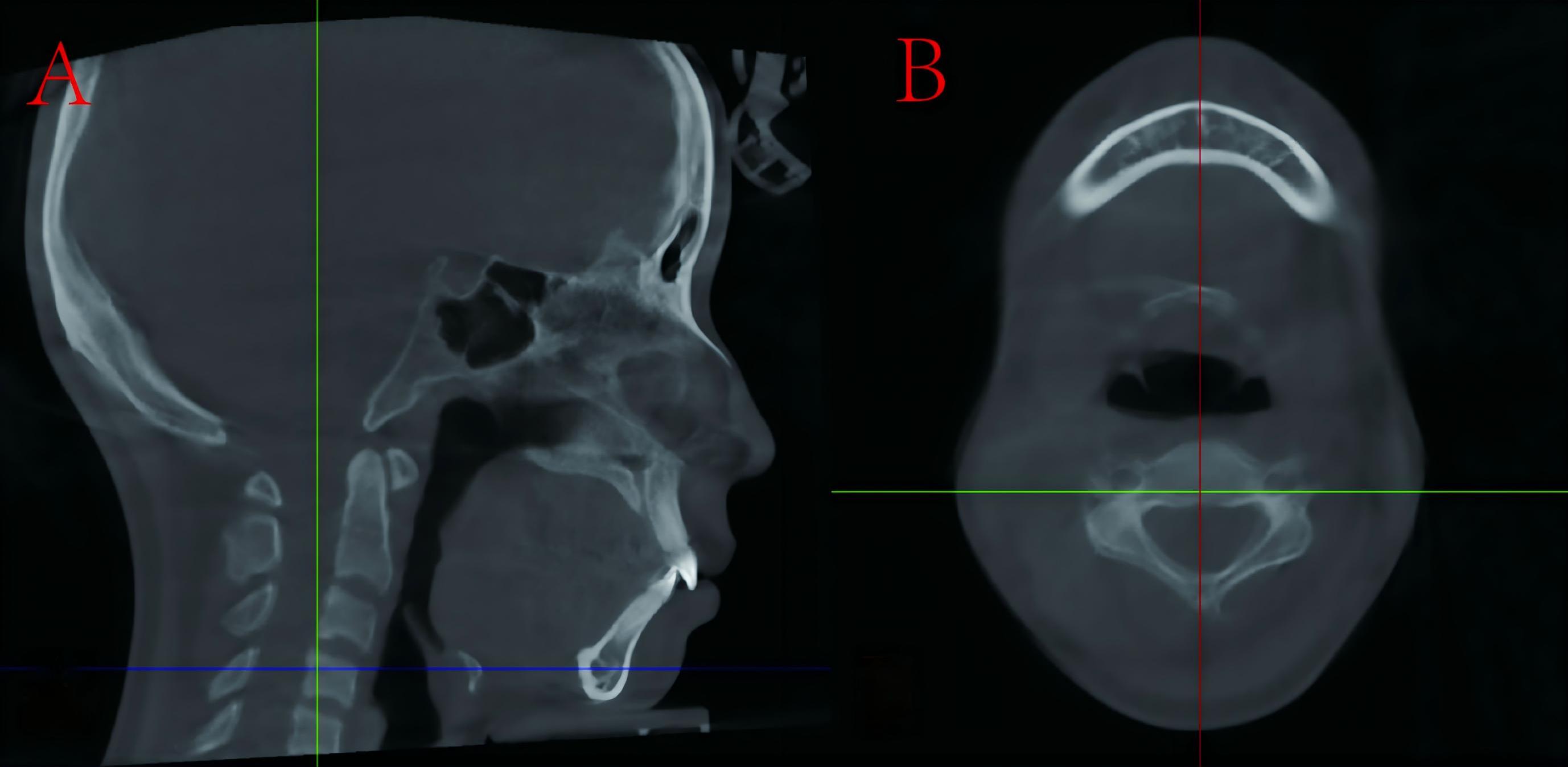

Determining the midsagittal plane of the mandible. (A) The blue line is parallel to the FH plane and passes through point Pog. (B) The red line crosses the widest anterior and posterior distance in the middle of the mandible.

Fig. 1.Determining the midsagittal plane of the mandible. (A) The blue line is parallel to the FH plane and passes through point Pog. (B) The red line crosses the widest anterior and posterior distance in the middle of the mandible.

In this study, the protuberance and height of the chin and mandibular symphysis were measured separately (Fig. 2A,B). To measure the chin volume, the dolphin volume sculpting tool was used to outline the chin region and calculate its volume (Fig. 2C,D). The specific measurements are shown in Table 1 (Ref. [10, 19]).

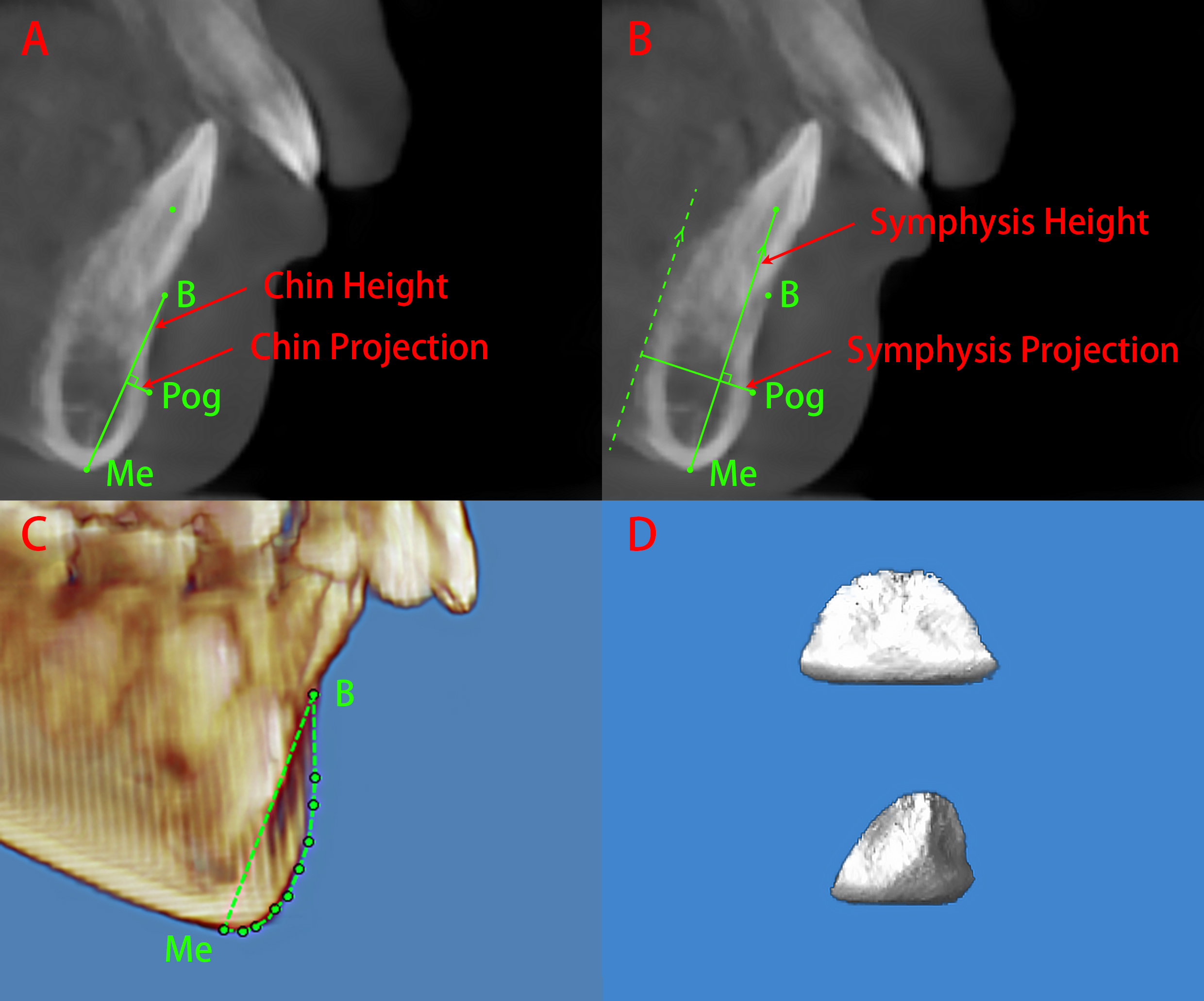

Chin and symphysis measurements. (A) Chin linear measurements: chin projection, chin height. (B) Symphysis linear measurements: symphysis projection, symphysis height. (C) Delimitation of chin volume. (D) 3D image of chin volume: front view and 45-degree profile view. Pog: Pogonion; Me: Menton.

Fig. 2.Chin and symphysis measurements. (A) Chin linear measurements: chin projection, chin height. (B) Symphysis linear measurements: symphysis projection, symphysis height. (C) Delimitation of chin volume. (D) 3D image of chin volume: front view and 45-degree profile view. Pog: Pogonion; Me: Menton.

Table 1.Measurement of craniofacial morphology.
VariableDescription
Dentoskeletal configurations (°)
SN-MPAngle between SN and MP planes
ANBAngle between SNA and SNB planes
FH-NPo (°)Angle between FH and NPo planes
OPs in mixed dentition
AOP [19]Maxillary OP anterior, a line drawn from the incisal edge of the maxillary central permanent incisor to the cusp tips of the maxillary second deciduous molar
POP [19]Maxillary OP posterior, a line drawn from the cusp tips of the maxillary second deciduous molar to the midpoint of the maxillary first permanent molar at the occlusal surface
OP (downs) [10]A dividing line between the upper and lower first mesial incisors and the upper and lower permanent molar occlusion
Occlusal plane (°)
FH-OPAngle between the FH plane and OP
FH-AOPAngle between the FH plane and AOP
FH-POPAngle between the FH plane and POP
OP difference (P-A)Angle between AOP and POP
Chin
Height (mm)The distance between the B point and the me
Projection (mm)The maximum thickness of the chin, measured as the shortest distance between the pogonion and the chin height line
Shape Index (%)The ratio between the chin projection and the chin height, multiplied by 100
Volume (mm3)The plane of descent through point B is perpendicular to the plane of the inferior border of the mandible and lies in its anterior portion
Symphysis
Height (mm)The distance between the most superior point on the alveolar bone and the me
Projection (mm)The distance between the pogonion and the most posterior point on the symphysis
Symphysis shape index (%)The ratio between the symphysis thickness and the symphysis height, multiplied by 100
OP: the occlusal plane; OPs: occlusal planes; AOP: anterior occlusal plane; POP: posterior occlusal plane; SN-MP: Sella-Nasion plane to Mandibular Plane angle; ANB: Angle between Nasion-A point and Nasion-B point; SNA: Sella-Nasion-A point angle; SNB: Sella-Nasion-B point angle; FH-NPo: Frankfort Horizontal plane to Nasion-Pogonion line angle.

2.7 OPs measurements

Table 2 shows the landmarks used in this study. Lateral cephalograms were generated to measure the sagittal and vertical patterns, as well as the OPs cant [14] (Fig. 3, Table 1). The inclination of the OP, AOP and POP were measured using the FH (Frankfort Horizontal plane) as the reference plane.

Table 2.Landmarks of cephalometric.
LandmarksDefinitions
SSella, the midpoint of the cavity of sella turcica
NNasion, the anterior point of the intersection between the nasal and frontal bones
PoPorion, superior-most point on the external auditory meatus
OrOrbitale, the lowest point on the inferior bony margin of the orbits
AThe deepest point on the concavity of the maxilla between ANS and the maxillary alveolus
BThe innermost point on the contour of the mandible between the mandibular incisor and chin
PogPogonion, the most prominent point of the symphysis, measured in relation to the FH plane
GoGonion, point on the contour of the mandible obtained by bisecting the angle between the mandibular plane and the tangent to the posterior border of the mandible
MeMenton, the most interior point on the chin
U6The midpoint of the maxillary first permanent molar at the occlusal surface
L6The midpoint of the mandibular first permanent molar at the occlusal surface
UEThe midpoint of the maxillary second deciduous molar at the occlusal surface
U1The incisal point of the most prominent mandibular incisor
L1The cusp tip of the mandibular first mesial incisors
ANS: Anterior Nasal Spine; FH: Frankfort Horizontal plane.

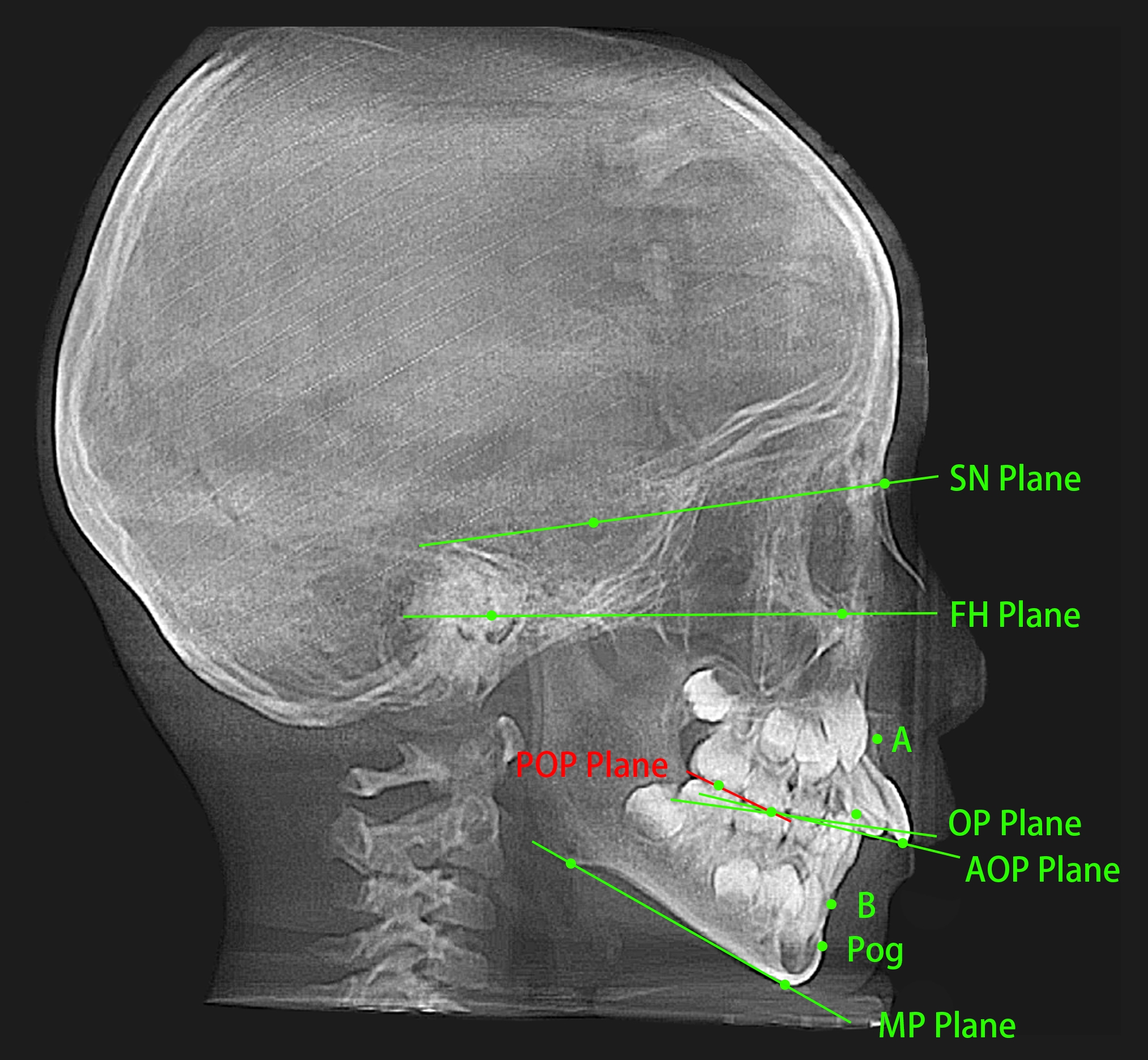

Landmarks and planes. POP: posterior occlusal plane; OP: the occlusal plane; AOP: anterior occlusal plane; Pog: Pogonion; MP: Mandibular Plane angle; SN: Sella-Nasion plane; FH: Frankfort Horizontal plane.

Fig. 3.Landmarks and planes. POP: posterior occlusal plane; OP: the occlusal plane; AOP: anterior occlusal plane; Pog: Pogonion; MP: Mandibular Plane angle; SN: Sella-Nasion plane; FH: Frankfort Horizontal plane.

2.8 Statistical analysis

Statistical analyses were performed with the GraphPad Prism 8 (GraphPad Software, Inc. (a subsidiary of Dotmatics), San Diego, CA, USA). A subset of the CBCT data was re-measured by the same observer after a two-week interval. The intra-class correlation coefficient (ICC) for all measurements ranged from 0.776 to 0.972, demonstrating excellent reliability and repeatability for each measurement. In addition to standard descriptive statistical calculations (means and standard deviations), ANOVA (Analysis of Variance) tests were used to assess differences among the three groups, and post-hoc analyses (Tukey tests) were employed to test for two-by-two differences. We also measured the differences of the age among the three groups (Supplementary Table 1). The data characteristics of the three groups were calculated separately for males and females by separating the inclusion criteria by sex (Supplementary Tables 2 and 3). Spearman’s rank correlations were calculated for the inclination of OPs and the position and shape of the chin and mandibular symphysis in patients with skeletal Class II malocclusion (Table 3). For normodivergent skeletal Class I malocclusion, please refer to Supplementary Table 4. Statistically significant differences were determined at p < 0.05.

Table 3.Spearman’s rank correlation between the inclination of OPs and the position and shapes of the chin and mandibular symphysis in individuals of normodivergent and hyperdivergent skeletal Class II malocclusions.
FH-OPFH-POPFH-AOP
Coefficient (r)p ValuesCoefficient (r)p ValuesCoefficient (r)p Values
FH-NPo−0.6647<0.0001****−0.5373<0.0001****−0.4774<0.0001****
Chin Height−0.25010.0121*−0.16980.0911−0.21420.0323*
Chin projection−0.4590<0.0001****−0.22970.0215*−0.30150.0023**
Symphysis Height−0.23520.0185*−0.097070.3367−0.23790.0172*
Symphysis Projection−0.29910.0025**−0.13320.1864−0.25870.0094**
Chin Shape Index−0.34960.0004***−0.13200.1905−0.19580.0508
Symphysis Shape Index−0.10210.3121−0.043720.6658−0.064170.5259
Volume−0.11300.2653−0.082920.4145−0.08730.3902
Significance: *p < 0.05; **p < 0.01; ***p < 0.001; ****p < 0.0001.
FH-NPo: Frankfort Horizontal plane to Nasion-Pogonion line angle; FH-OP: the inclination of the occlusal plane; FH-POP: the inclination of the posterior occlusal plane; FH-AOP: the inclination of the interior occlusal plane.

3. Results

3.1 Positional and morphological characteristics of the chin and mandibular symphysis in patients with skeletal Class II malocclusion

Among the three groups, the chin position (FH-NPo: Frankfort Horizontal plane to Nasion-Pogonion line angle) was most posterior in IIH patients and most anterior in IN patients (Table 4). The results indicated that both the vertical and sagittal dimensions influence the chin position. Furthermore, we analyzed the chin and mandibular symphysis shape indices among the three groups. Compared with those in IIN (p < 0.01) and IIH (p < 0.001), the chin and mandibular symphysis shape indices in IN were significantly greater (Table 4).

Table 4.Characterization of data from the measurement items in participants.
Mean ± SDSignificancePost-hoc
ClassIN
(n = 50)		IIN
(n = 50)		IIH
(n = 50)		INvs. IININvs. IIHIINvs. IIHMultiple comparison
ANB3.4 ± 1.16.6 ± 1.17.2 ± 1.3********0.023*IIH > IIN > IN
SN-MP33 ± 2.634 ± 2.141 ± 3.5ns********IIH > IN, IIH > IIN
FH-OP11 ± 3.412 ± 3.815 ± 3.0ns********IIH > IN, IIH > IIN
FH-POP17 ± 3.820 ± 3.722 ± 3.40.002******0.031*IIH > IIN > IN
FH-AOP12 ± 4.114 ± 4.116 ± 4.50.004******nsIIN > IN, IIH > IN
POP-AOP5.7 ± 4.75.0 ± 4.15.1 ± 5.5nsnsns-
FH-NPo86 ± 2.984 ± 2.682 ± 2.5*******0.006**IN > IIN > IIH
Chin Projection3.5 ± 0.593.3 ± 0.593.0 ± 0.42ns***0.020*IN > IIH, IIN > IIH
Chin Height17 ± 1.518 ± 1.718 ± 1.60.030****nsIIN > IN, IIH > IN
Chin Shape Index21 ± 3.019 ± 2.717 ± 2.10.002*********IN > IIN > IIH
Symphysis Projection14 ± 1.213 ± 1.313 ± 1.2ns***0.011*IN > IIH, IIN > IIH
Symphysis Height28 ± 2.128 ± 2.029 ± 2.3ns****nsIIH > IN
Symphysis Shape Index49 ± 5.447 ± 5.143 ± 4.00.031********IN > IIN > IIH
Chin Volume1067 ± 2641097 ± 3521047 ± 267nsnsns-
IN: normodivergent skeletal Class I malocclusion; IIN: normodivergent skeletal Class II malocclusion; IIH: hyperdivergent skeletal Class II malocclusion; ns: no significance; SD: standard deviation; POP-AOP: posterior occlusal plane-anterior occlusal plane; ANB: Angle between Nasion-A point and Nasion-B point; SN-MP: Sella-Nasion plane to Mandibular Plane angle; FH-OP: the inclination of the occlusal plane; FH-POP: the inclination of the posterior occlusal plane; FH-AOP: the inclination of the interior occlusal plane; FH-NPo: Frankfort Horizontal plane to Nasion-Pogonion line angle.
Significance: *p < 0.05; **p < 0.01; ***p < 0.001; ****p < 0.0001.

To measure the shapes of the chin and mandibular symphysis in the anteroposterior and vertical directions, we further analyzed the specific protuberance and height of the chin and mandibular symphysis in patients with skeletal Class II malocclusion. For chin and mandibular symphysis projections, there was no significant difference between the IN and IIN groups (Table 4). However, the chin and mandibular symphysis projections in IIH patients were smaller than those in IN and IIN patients. The results revealed a greater effect of the vertical dimension on the chin and mandibular symphysis projections.

Vertically, the chin height was significantly shorter in the IN group than in IIN and IIH groups (Table 4). The IIN and IIH groups did not significantly differ in chin height. The results revealed a greater effect of sagittal orientation on the chin height. For mandibular symphysis height, a significant difference was only between the IN and IIH groups (Table 4). The results revealed significant differences only in the presence of dual factors in the vertical and sagittal directions.

Overall, the results indicated that the chin and mandibular symphysis morphologies were broader and shorter in the IN group, and thinner and taller in the IIH group. No statistically significant differences were found in chin volume among the groups.

3.2 Steepness of the OPs in patients with skeletal Class II malocclusion

To study the inclination of the OPs in patients with skeletal Class II malocclusion of different vertical patterns, we compared FH-OP, FH-POP and FH-AOP among the three groups (Table 4). The results revealed that FH-OP was not significantly different for normodivergent patterns in either skeletal Class I or II malocclusions, but was steeper in IIH than in IN and IIN (Table 4). These findings suggested that the vertical skeletal pattern might impact the FH-OP pattern more than the sagittal skeletal pattern.

The FH-POP was steepest in the IIH group, followed by that in the IIN and IN groups (Table 4). The results suggested that the POP might be influenced by both sagittal and vertical skeletal malocclusions. Regarding the AOP, the FH-AOP was not significantly different between the IIN and IIH groups but was flatter in the IN group than in the IIN and IIH groups (Table 4). The results revealed that the sagittal skeletal pattern might exert a greater influence on the FH-AOP than the vertical skeletal pattern does.

3.3 Correlations between the inclination of the OPs and the position and shape of the chin and mandibular symphysis in patients with skeletal Class II malocclusion

After understanding the characteristics of the OPs, chin and mandibular symphysis, we conducted correlation analyses to elucidate the relationships among these factors. The results indicated that OP indices, such as AOP, POP and OP, were negatively correlated with FH-NPo (Table 3). The results revealed that the steeper the OPs were, the more posterior the chin position was.

Several statistically significant negative correlations were observed between the OP indices and the chin and mandibular symphysis morphology. FH-OP (Table 3) was negatively correlated with chin projection, chin height, mandibular symphysis projection, mandibular symphysis height and the chin shape index.

FH-POP exhibited a weak but significant correlation with chin projection (Table 3). FH-AOP was negatively correlated with chin projection, chin height, mandibular symphysis projection and mandibular symphysis height (Table 3). The results revealed that the inclinations of the OP and AOP were more strongly correlated with the chin and mandibular symphysis morphology.

4. Discussion

The OP, which is the contact of the upper dentition with the lower dentition, is a guiding surface that affects the spatial position of the mandible [21]. In cases of skeletal class II malocclusion, the mandibular position, which significantly impacts the facial aesthetics of these individuals, can be modified by adjusting the height of the upper dentition and alveolus [12, 22]. During growth and development, the occlusal plane could be modified through functional correction. Treatment with functional advancement appliances was shown to cause significant labial tilt of the mandibular incisors and clockwise rotation of the occlusal plane [23]. Additionally, the occlusal plane could be adjusted in fixed appliance treatment using various methods, including Class II elastics [24], microimplants [25], high-pull J-hook headgear [26] and others [7]. Class II elastics were commonly used to treat patients with Class II malocclusion and could result in the elongation of maxillary anterior teeth and mandibular molars, leading to a clockwise rotation of the occlusal plane [24]. This backward rotation of the occlusal plane could cause a corresponding backward rotation of the mandible, which was particularly detrimental to the lateral appearance of individuals with skeletal Class II malocclusion. When headgear was employed for vertical control, the occlusal plane could be effectively lowered by applying pressure to the upper teeth, which was a crucial factor in the successful treatment of skeletal Class II malocclusion in children [27].

In a long-term study of the occlusal plane, the POP of Class II malocclusions was steeper than that of Class I malocclusions in individuals who had already completed their growth [1]. During growth and development, the POP in Class I malocclusions remained relatively flat from 6 to 14 years old. In contrast, the POP in Class II malocclusions during the growth stage was steeper than that of Class I malocclusion. Additionally, a significant association was observed between a steep occlusal plane and a reduction in mandibular prognathism among individuals with Class II malocclusion. Therefore, during the growth and development period, flattening the occlusal plane in patients with skeletal Class II malocclusion may contribute to the development of the chin.

In addition to the chin position, the shape of the chin and that of the mandibular symphysis also play crucial roles in enhancing facial aesthetics [20]. Despite the aesthetic associations of the chin and mandibular symphysis morphologies with lateral appearance, the characteristics of the chin and mandibular symphysis in different sagittal malocclusions have been overlooked. The mandibular symphysis refers to the portion of the mandible that includes the alveolus above and the base below the anterior mandible, whereas the chin is defined as the base below the anterior mandible bounded by point B [28]. Previous studies have often confused the chin and mandibular symphysis [11, 29]. Therefore, we investigated the relationships between the OPs and the morphologies of the chin and mandibular symphysis in patients with skeletal class II malocclusion, excluding the interference of other malocclusions. Furthermore, new measurements describing the morphologies of the chin and mandibular symphysis were implemented [20].

Many studies have pointed out the factors related to mandibular symphysis morphology, such as genes, muscle activity, mandibular incisor teeth and others. Mandibular symphysis shape is strongly controlled by genes. Patients with β-thalassemia have thinner and smaller mandibular symphysis [4]. As for muscle activity, the mandibular symphyses are fibrous joints adapted to the growth of the jaw, responsible for transferring force from the working side of the mandible to the balanced side [30]. Tongue movement and shut-opening activity can be seen in the fetus, and the ossification of the mandibular symphysis in the fetus may be related to the tension received [31]. One study indicated that the mandibular symphysis was higher and narrower in skeletal Class II malocclusion than in skeletal Class I malocclusion, which might be related to overactivity of the mentalis muscle in skeletal Class II patients [32]. As for the relationship between the mandibular incisors and the morphology of the mandibular symphysis, the mandibular symphysis is more inclined to the lingual side with less thickness and height when the mandibular incisors were absent [33]. However, there have been no studies investigating the correlation between the OPs and the morphologies of the chin and mandibular symphysis.

Our findings demonstrated that the shapes of the chin and mandibular symphysis were broadest and shortest in IN patients and thinnest and tallest in IIH patients (Table 4). However, no significant differences in chin volume were found among the three groups (Table 4). Regarding the correlation between the OPs and the morphologies of the chin and mandibular symphysis in individuals with skeletal Class II malocclusion, our findings revealed that the height and width of the chin and mandibular symphysis decreased as the OP and AOP tilt increased (Table 3). The results of our study suggested that a steep occlusal plane might be related to the height and width of the chin and mandibular symphysis. In previous studies, the morphologies of the chin and mandibular symphysis were found to be correlated with the skeletal patterns [10, 34, 35]. The widths of the chin and mandibular symphysis were also determined to have an inverse correlation with the mandibular plane (MP) among different vertical skeletal patterns [9, 36]. Additionally, there was a high degree of agreement between MP and OP [37]. The chin and mandibular symphysis widths were narrower in proportion to the steepness of the OP and MP. The results indicated that the widths of the chin and mandibular symphysis were not only related to the vertical facial pattern, but also associated with the inclination of the OPs.

In this study, OP and AOP were significantly negatively correlated with chin position, which suggested that a steeper OP might be associated with a more posterior chin position (Table 3). Previous investigations introduced the concept of jaw rotation and indicated that a steeper OP could be associated with a more posterior chin position [16, 38]. Among the three groups, we observed that the inclination of the AOP was significantly greater in patients with skeletal class II malocclusion than in those with skeletal class I malocclusion (Table 4). The OP compensates for the sagittal relationship between the maxilla and mandible, with the inclination of the mandibular incisors playing a crucial role in achieving anterior occlusal relationships [39]. The OP compensates for the sagittal relationship between the maxilla and mandible, with the inclination of the mandibular incisors playing a crucial role in achieving anterior occlusal relationships [40]. This demonstrates that the lower incisor is associated with the mandibular symphysis morphology and can be modified through orthodontic treatment to alter the mandibular symphysis morphology [33].

In addition, the POP inclination was steepest in patients with hyperdivergent skeletal class II malocclusion and flattest in patients with normodivergent skeletal class I malocclusion (Table 4). The chin position was negatively correlated with the POP (Table 3). A study has shown that counterrotation of the mandible can be obtained by upward pressure on the upper dentition, increasing the prominence of the chin [41].

The findings of the present investigation suggest that OPs might have correction with the development of chin and mandibular symphysis morphologies in individuals with skeletal Class II malocclusion. Adolescence is the key period for early correction of children with skeletal Class II malocclusion. Early treatment methods for children aged 6 to 12 years, such as Twin-Block, Activator and mandibular advancement with clear aligners, can effectively improve their Skeletal Class II profile [42]. For patients older than 12 years age, the B point was shifted back, and the chin became more pronounced after extraction orthodontic treatment [43]. However, the majority of early orthodontic studies examined the effects on the position of chin, there was a lack of research exploring the influence of orthodontic treatment on chin and mandibular symphysis morphologies.

High-pull headgear activators can flatten the OPs, so that the jaw can be reversed rotation, if later combined with fixed correction can better reduce the inclination of POP, to achieve a more stable therapeutic effect [27]. For patients with severe skeletal Class II mandibular retrusion, it is difficult to obtain a satisfactory amount of sagittal forward movement of the mandible due to the relatively steep occlusal plane [44]. In the surgical treatment, Silveira et al. [45] pointed out that for patients requiring a large amount of mandibular forward movement, a counterclockwise rotation of the occlusal plane could reduce the resistance to mandibular vertical and sagittal movement, allowing for better mandibular advancement. Therefore, flattening the occlusal plane during the growth and development period may potentially facilitate the development of the chin; however, further long-term studies are needed to confirm this.

There were some limitations in this study. First, this study was a cross-sectional design. This paper discussed the relationship between the inclination of the occlusal plane and the position and morphologies of the chin and mandibular symphysis. However, the reason behind this phenomenon was not explained. It was needed to further explore the relationship between changes in the inclination of the occlusal plane and changes in the mandibular symphysis shapes following the intervention of functional appliances. Furthermore, the number of patients with hypodivergent skeletal Class II malocclusion was too small at the time of collection. Therefore, the vertical classification in this study was only divided into normodivergent and hyperdivergent malocclusions. If the hypodivergent skeletal Class II malocclusion group was included, it may be more beneficial for assessing the influence of the vertical dimension.

5. Conclusions

1. The shapes of the chin and mandibular symphysis were the broadest and shortest in individuals with IN and were thinnest and tallest in individuals with IIH. There was no statistically significant difference in chin volume.

2. In individuals with skeletal Class II malocclusion, there was a negative correlation between the inclination of the OPs and the height and width of the chin and mandibular symphysis, as well as the chin position.

Abbreviations

OPs, occlusal planes; OP, the occlusal plane; AOP, anterior occlusal plane; POP, posterior occlusal plane; CBCT, cone beam computed tomography; IN, normodivergent skeletal Class I malocclusion; IIN, normodivergent skeletal class II malocclusion; IIH, hyperdivergent skeletal Class II malocclusion; GALL, Gysi Anterior Lingual Line; TVL, Terry’s Vertical Line; MP, the mandibular plane; ICC, intra-class correlation coefficient; FH, Frankfort Horizontal plane; ANB, Angle between Nasion-A point and Nasion-B point; SN, Sella-Nasion plane; DICOM, Digital Imaging and Communications in Medicine; ANOVA, Analysis of Variance; NPo, Nasion-Pogonion.

Availability of data and materials

The raw data used in this paper are available from the corresponding author upon reasonable request.

Author contributions

LXEY, YTC, SYL, XW and AXG—designed the research study; reviewed and edited the manuscript. LXEY—collected and measured the data. LXEY, HBJ and JYW—analyzed the data and wrote the manuscript. All authors contributed to editorial changes in the manuscript. All authors read and approved the final manuscript.

Ethics approval and consent to participate

The study was approved by the Committee on Ethics at the Children’s Hospital of Nanjing Medical University and was conducted following the tenets of the Declaration of Helsinki for research involving human subjects (Approval No: 202402020-1). All legal guardians signed informed consent forms and the patient’s personal information was kept confidential.

Acknowledgment

Thanks to all members for their efforts. Thanks also to all reviewers.

Funding

This research was supported by the clinical program of the Children’s Hospital of Nanjing Medical University (LCYJY202304).

Conflict of interest

The authors declare no conflict of interest.

Supplementary material

Supplementary material associated with this article can be found, in the online version, at https://oss.jocpd.com/files/article/1985188055974068224/attachment/Supplementary%20material.docx.

References

Schwartz JH, Tattersall I. The human chin revisited: what is it and who has it? Journal of Human Evolution. 2000; 38: 367–409.

[Google Scholar]

Adamek A, Sarul M, Lis J, Kobiela Z, Kiełczawa M, Semeniuk F. Influence of lip projection and chin position on facial profile preferences among various layers of polish population. Part 1. Clinical, Cosmetic and Investigational Dentistry. 2022; 14: 253–263.

[Google Scholar]

Skieller V, Bjork A, Linde-Hansen T. Prediction of mandibular growth rotation evaluated from a longitudinal implant sample. American Journal of Orthodontics. 1984; 86: 359–370.

[Google Scholar]

Khojastepour L, Naderi A, Akbarizadeh F, Movahhedian N, Ahrari F. Symphysis morphology and mandibular alveolar bone thickness in patients with β-thalassemia major and different growth patterns. Dental Press Journal of Orthodontics. 2022; 27: e22205.

[Google Scholar]

Decaup PH, Couture C, Garot E. Is the distribution of cortical bone in the mandibular corpus and symphysis linked to loading environment in modern humans? A systematic review. Archives of Oral Biology. 2023;152: 105718.

[Google Scholar]

Zhang J, Liang Y, Chen R, Chen S, Lin J, Han B, et al. Inclination of mandibular incisors and symphysis in severe skeletal class III malocclusion. Head & Face Medicine. 2023; 19: 16.

[Google Scholar]

Ghafari JG, Ziade EG, Kassab A, Saadeh M, Macari AT. Variation of chin morphology and mandibular incisor length in different facial divergence patterns: new insights from CBCT records. Orthodontics & Craniofacial Research. 2025; 28: 142–150.

[Google Scholar]

Ferreira AP, Lopes JD, Ponces MJ, De Castro SM, Nobre R. The relation between mandibular symphysis and the Angle class in orthodontic treatment. Medicine and Pharmacy Reports. 2022; 95: 446–454.

[Google Scholar]

Arruda KEM, Valladares Neto J, Almeida GdA. Assessment of the mandibular symphysis of Caucasian Brazilian adults with well-balanced faces and normal occlusion: the influence of gender and facial type. Dental Press Journal of Orthodontics. 2012; 17: 40–50.

[Google Scholar]

Badran SA, Abu Alhaija ES, Al Maaitah EF, Al-Khateeb SN. Mandibular symphysis morphology and dimensions in different anteroposterior jaw relationships. The Angle Orthodontist. 2014; 84: 304–309.

[Google Scholar]

Aki T, Nanda RS, Currier GF, Nanda SK. Assessment of symphysis morphology as a predictor of the direction of mandibular growth. American Journal of Orthodontics and Dentofacial Orthopedics. 1994; 106: 60–69.

[Google Scholar]

McNamara JA III. Components of class II malocclusion in children 8–10 years of age. The Angle Orthodontist. 1981; 51: 177–202.

[Google Scholar]

Cacciatore G, Ugolini A, Sforza C, Gbinigie O, Plüddemann A. Long-term effects of functional appliances in treated versus untreated patients with class II malocclusion: a systematic review and meta-analysis. PLOS ONE. 2019; 14: e0221624.

[Google Scholar]

Tanaka EM, Sato S. Longitudinal alteration of the occlusal plane and development of different dentoskeletal frames during growth. American Journal of Orthodontics and Dentofacial Orthopedics. 2008; 134: 602. e1–11.

[Google Scholar]

Cai J, Min Z, Deng Y, Jing D, Zhao Z. Assessing the impact of occlusal plane rotation on facial aesthetics in orthodontic treatment: a machine learning approach. BMC Oral Health. 2024; 24: 30.

[Google Scholar]

Eppard H. The occlusal plane inclination relative to craniofacial form: a cephalometric investigation [master’s thesis]. West Virginia University. 2012.

[Google Scholar]

Gómez-Bedoya JD, Escobar-Serna PA, Tanaka-Lozano EM, Agudelo-Suárez AA, Ramírez-Ossa DM. Occlusal plane, mandibular position and dentoalveolar changes during the orthodontic treatment with the use of mini-screws. Dentistry Journal. 2024; 12: 278.

[Google Scholar]

Peng H, Liu W, Yang L, Yan P, Zhong W, Gao X, et al. Craniocervical posture in patients with skeletal malocclusion and its correlation with craniofacial morphology during different growth periods. Scientific Reports. 2024; 14: 5280.

[Google Scholar]

Mehta S, Arqub SA, Sharma R, Patel N, Tadinada A, Upadhyay M, et al. Variability associated with mandibular ramus area thickness and depth in subjects with different growth patterns, gender, and growth status. American Journal of Orthodontics and Dentofacial Orthopedics. 2022; 161: e223–e234.

[Google Scholar]

Sella Tunis T, May H, Sarig R, Vardimon AD, Hershkovitz I, Shpack N. Are chin and symphysis morphology facial type-dependent? A computed tomography-based study. American Journal of Orthodontics and Dentofacial Orthopedics. 2021; 160: 84–93.

[Google Scholar]

Seker ED, Sunal Akturk E, Yilmaz HN, Kucukkeles N. Occlusal plane rotation and orthodontic decompensation: influence on the outcome of surgical correction of class III malocclusion. Journal of Orofacial Orthopedics. 2022; 84: 373–383.

[Google Scholar]

Hosseini HR, Ngan P, Tai SK, Andrews LJ, Xiang J. A comparison of skeletal and dental changes in patients with a Class II relationship treated with clear aligner mandibular advancement and Herbst appliance followed by comprehensive orthodontic treatment. American Journal of Orthodontics and Dentofacial Orthopedics. 2024; 165: 205–219.

[Google Scholar]

Bozkurt AP, Aras I, Othman E, Aras A. Comparison of 2 treatment protocols using fixed functional appliances in Class II malocclusion: treatment results and stability. American Journal of Orthodontics and Dentofacial Orthopedics. 2020; 157: 474–480.

[Google Scholar]

Kawamura J, Park JH, Kojima Y, Kook YA, Kyung HM, Chae JM. Biomechanical analysis for total mesialization of the mandibular dentition: a finite element study. Orthodontics & Craniofacial Research. 2019; 22: 329–336.

[Google Scholar]

Bardideh E, Tamizi G, Shafaee H, Rangrazi A, Ghorbani M, Kerayechian N. The effects of intrusion of anterior teeth by skeletal anchorage in deep bite patients; a systematic review and meta-analysis. Biomimetics. 2023; 8: 101.

[Google Scholar]

Yun S, Park JH, Chang NY, Seo HY, Sung JH, Hong SJ, et al. Craniomaxillofacial changes using high-pull j-hook headgear and mini-implant anchorage in adolescents: a structural superimposition method. Journal of Clinical Pediatric Dentistry. 2021; 45: 433–440.

[Google Scholar]

Sambataro S, Lorusso P, Caprioglio A, Franchi L, Cicciu M, Fastuca R. Changes of occlusal plane in growing patients with increased vertical dimension during Class II correction by using cervical headgear. Journal of Craniofacial Surgery. 2020; 31: 172–177.

[Google Scholar]

Daegling DJ. Functional morphology of the human chin. Evolutionary Anthropology. 2005; 1: 170–177.

[Google Scholar]

Gómez Y, García-Sanz V, Zamora N, Tarazona B, Bellot-Arcís C, Langsjoen E, et al. Associations between mandibular symphysis form and craniofacial structures. Oral Radiology. 2018; 34: 161–171.

[Google Scholar]

Holliday CM, Nesbitt SJ. Morphology and diversity of the mandibular symphysis of archosauriforms. Geological Society, London, Special Publications Home. 2013; 379: 555–571.

[Google Scholar]

Delpupo FVB, Liberti EA, da Silva Baptista J, de Oliveira F. Light and scanning electron microscope characterization of mandibular symphysis tissue as a functional adaptation in the mandible development of human fetuses. Journal of Anatomy. 2025; 246: 222–233.

[Google Scholar]

Pintavirooj P, Sumetcherngpratya R, Chaiwat A, Changsiripun C. Relationship between mentalis muscle hyperactivity and mandibular symphysis morphology in skeletal Class I and II patients. Orthodontic Waves. 2019; 73: 130–135.

[Google Scholar]

Yoshida S, Ota S, Kobayashi S. Influence of mandibular incisor agenesis and growth pattern on symphysis characteristics: a retrospective cephalometric study. Orthodontics & Craniofacial Research. 2023; 26: 393–401.

[Google Scholar]

Okumura Y, Koizumi S, Suginouchi Y, Hikita Y, Yamaguchi T, Nadim M, et al. Chin morphology in relation to the skeletal pattern, age, gender, and ethnicity. Applied Sciences. 2022; 12: 12717.

[Google Scholar]

Marghalani HYA, Guan G, Hyun P, Tabbaa S, Linjawi AI, Al-Jewair T. Relationship between mandibular symphysis dimensions and skeletal pattern in adults. Folia Morphologica. 2022; 81: 464–471.

[Google Scholar]

Sassouni V. A classification of skeletal facial types. American Journal of Orthodontics. 1969; 55: 109–123.

[Google Scholar]

Anwar N, Fida M. Compensation for vertical dysplasia and its clinical application. European Journal of Orthodontics. 2009; 31: 516–522.

[Google Scholar]

Björk A. Prediction of mandibular growth rotation. American Journal of Orthodontics. 1969; 55: 585–599.

[Google Scholar]

Li Y, Li X, Li J, Wang J, Zhao S, Zhao Z, et al. Occlusal plane canting reduction accompanies mandibular counterclockwise rotation in camouflaging treatment of hyperdivergent skeletal Class II malocclusion. The Angle Orthodontist. 2013; 83: 758–765.

[Google Scholar]

Casko JS, Shepherd WB. Dental and skeletal variation within the range of normal. The Angle Orthodontist. 1984; 54: 5–17.

[Google Scholar]

Liaw J, Huang G, Tsai FF, Wang SH, Liao W. Torque control of maxillary anterior teeth with the double J retractor and palatal miniscrews during en masse retraction. The Angle Orthodontist. 2022; 92: 562–572.

[Google Scholar]

Wu Y, Yu Q, Xia Y, Wang B, Chen S, Gu K, et al. Does mandibular advancement with clear aligners have the same skeletal and dentoalveolar effects as traditional functional appliances? BMC Oral Health. 2023; 23: 65.

[Google Scholar]

Sharma JN. Skeletal and soft tissue point A and B changes following orthodontic treatment of Nepalese Class I bimaxillary protrusive patients. The Angle Orthodontist. 2010; 80: 91–96.

[Google Scholar]

Hasprayoon S, Liao YF, Hsieh YJ. Skeletal stability after mandibular counterclockwise rotational advancement for correction of skeletal Class II deformity—a systematic review and meta-analysis. Journal of Evidence-Based Dental Practice. 2019; 19: 156–165.

[Google Scholar]

da Silveira MLM, de Oliveira Bueno ML, da Silva JSP, Germano AR. Biomechanical analysis in mandibular advancement and occlusal plane rotation with finite element analysis. British Journal of Oral and Maxillofacial Surgery. 2021; 59: 362–367.

[Google Scholar]
